Description

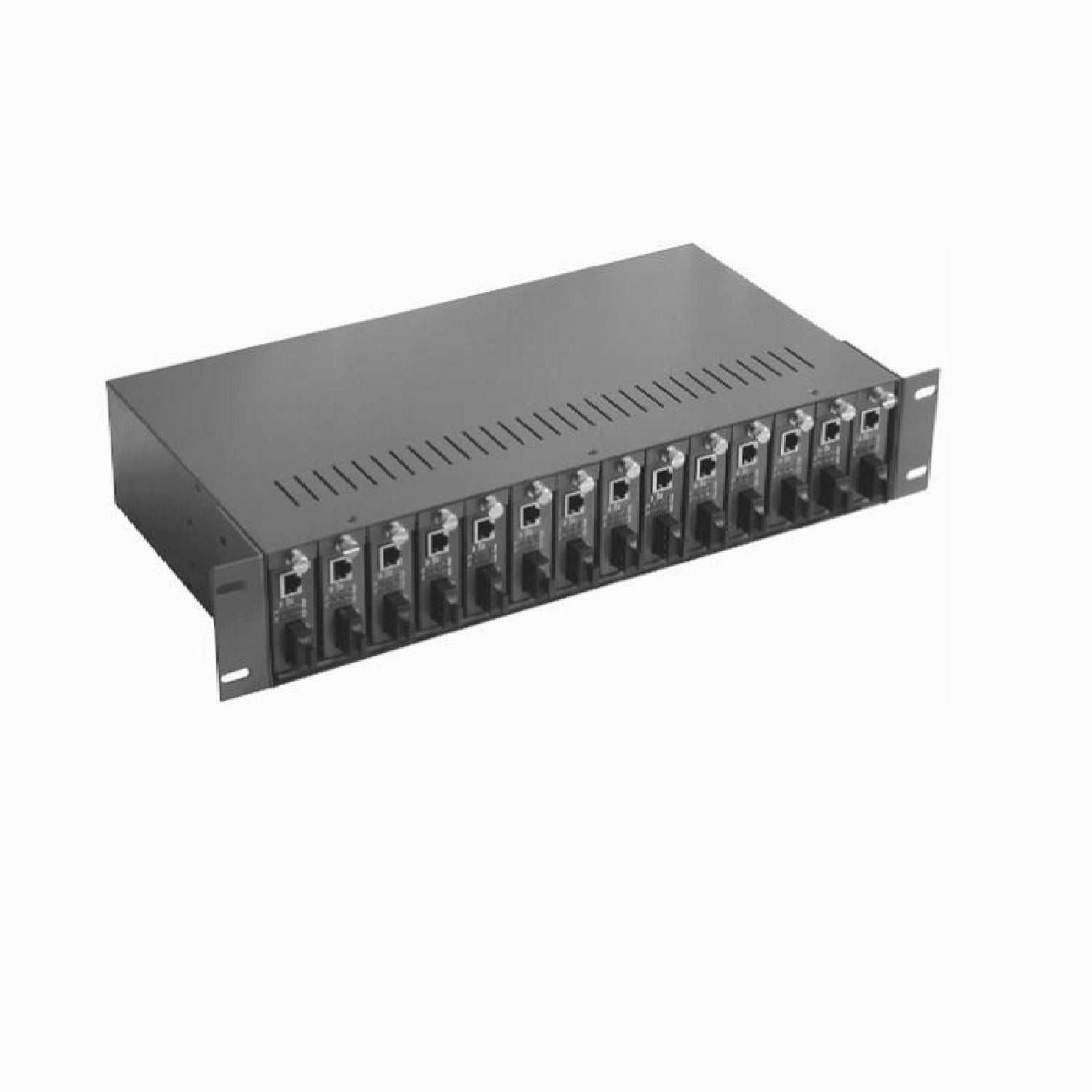

The Dynamode CR1000 fully featured, 19-inch rackmount 2U chassis for incorporating up to 14 individual Dynamode or equivalent form-factor media converters. Complete with two separate PSUs for complete power redundancy for your critical fibre links, complete with thermal and heat control.
Simply slot in your fibre media converters, each converter connects to a common power supply plug and is secured via thumbscrews. Allowing a neat, easily to maintain appliance which can be located in almost any size data cabinet
Reliable 24/7, ideal for telecom, data centres and public sector infrastructure applications which use multiple copper to fibre conversion links.
Key Features:
- 14 Slot Fibre Media Converter Secure Chassis
- Supports almost all types of media converters

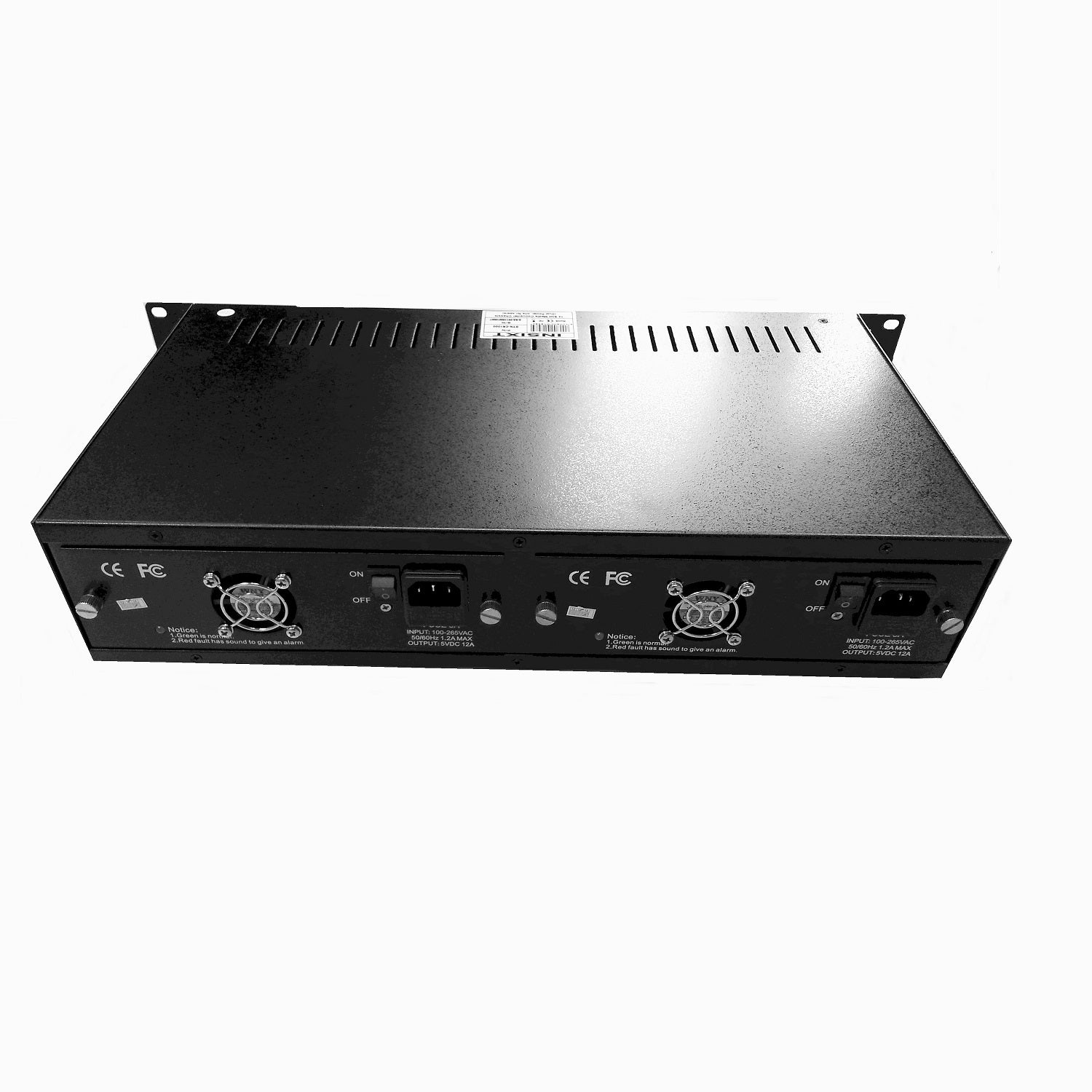

- Dual PSUs for power redundancy
- Reduce any connection downtime to near zero
- Integral thermal management of cooling fans
- Backed up by Dynamode's exclusive 3-year warranty
Applications:
- Create an easy-to-maintain, highly redundant and secure housing for multiple fibre media converters
- Ideal for telecom, data centres, server rooms and deployments that use multiple fibre media converters
- Immune to electrical noise, so ideal for challenging RF noise areas
Product Info:
- SKU/MPN: CR10000
- EAN: 8400800013712
- Weight: 1.0Kg approx
Technical Specifications:
- Warranty Dynamode 3-Year Warranty
- Form Factor 2U, 19-Inch Rackmount
- PSU Dual, redundant PSUs, 5V 12Amp
- Slots 14 Slot with independent power connects
- Cooling Integral passive and active cooling
- Chassis Alloy chassis with rackmount brackets
- Power Supply Internal Switch Mode 110-240VAC
Supplied With:
- Part Number: CR10000
- EAN: 8400800013712
- Weight: 1.0 kg approx.
Files:
Check Out Our Range of Active Network Hardware >>CLICK HERE
* Specifications and product design are subject to change. E&OE.
CR1000 supplied without media converters

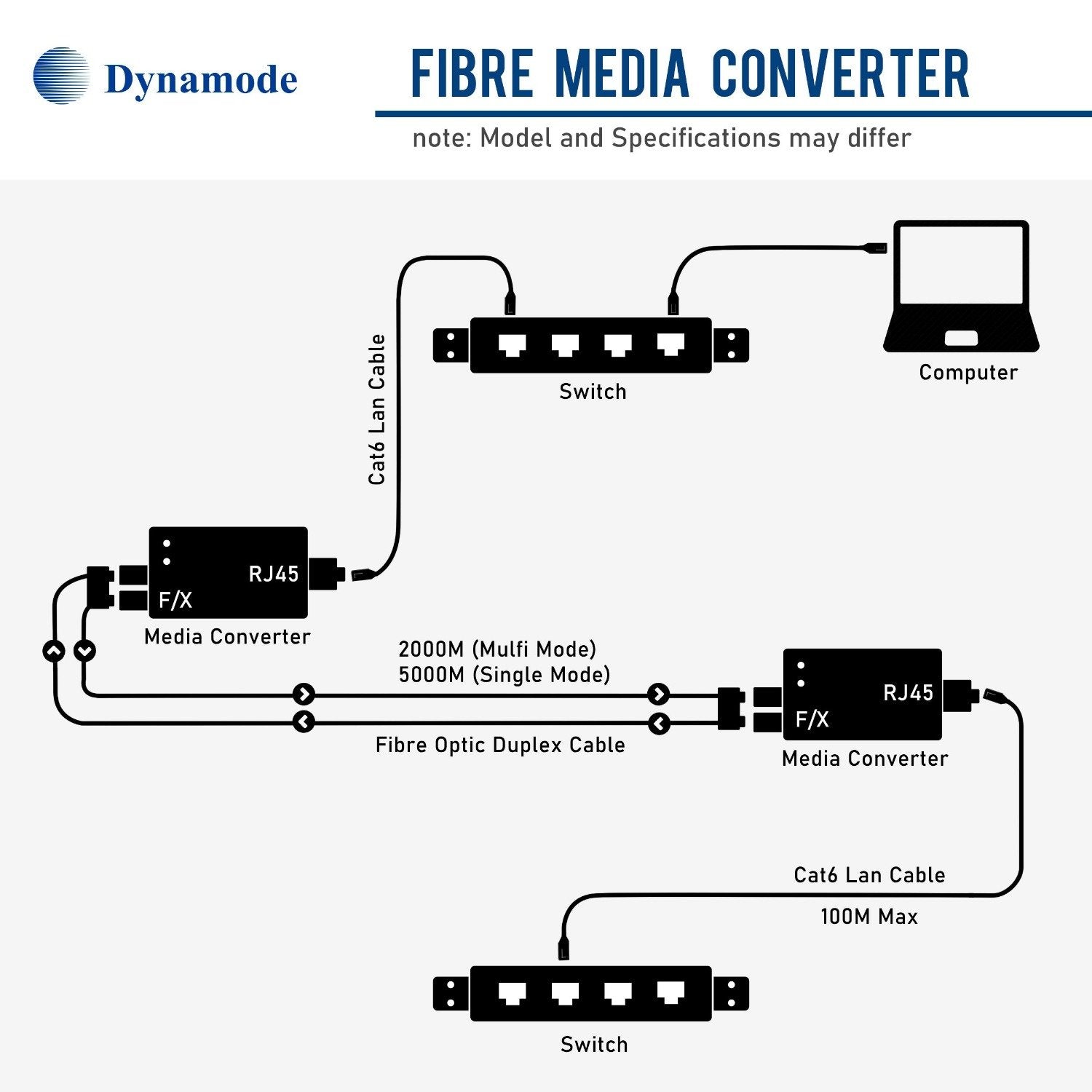

What's a Media Converter? The clues in the name. It converts electrical signals on a regular copper RJ45 cable and changes it to light signals and vice versa. Light signals in fibre have the advantage of being totally immune to electrical noise plus fibre LAN cables can extended to 2K
