100Base-T to 100BASE-FX Multimode Fibre Media Converter, SC Connector (up to 2000m) (INSIXTMC100SC)
Rated 3.5/5 based on 11 customer reviews

100Base-T to 100BASE-FX Multimode Fibre Media Converter, SC Connector (up to 2000m) (INSIXTMC100SC)

  • P/N: INSIXTMC100SC
Available: In Stock
£18.75 £25.00

Description

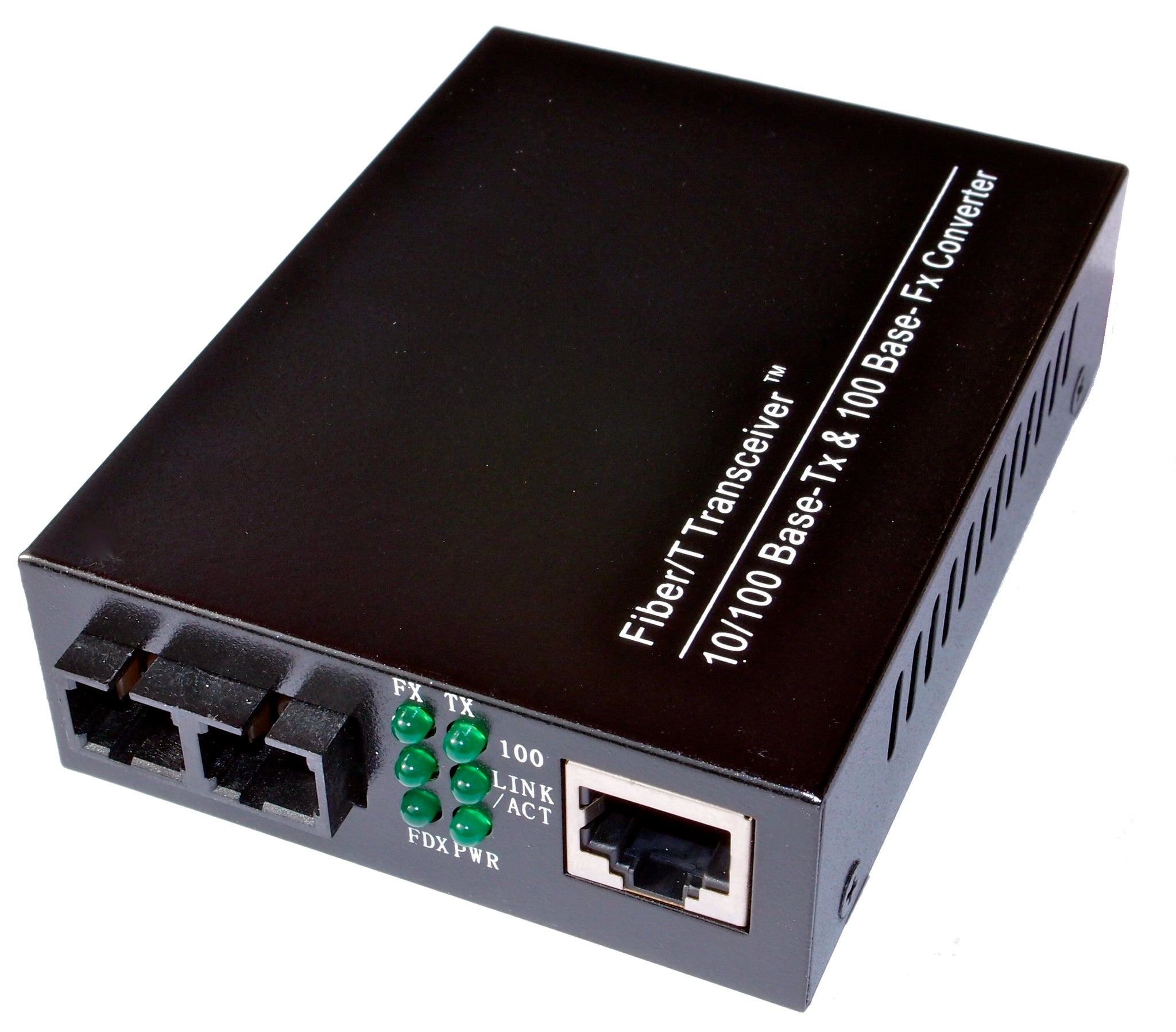

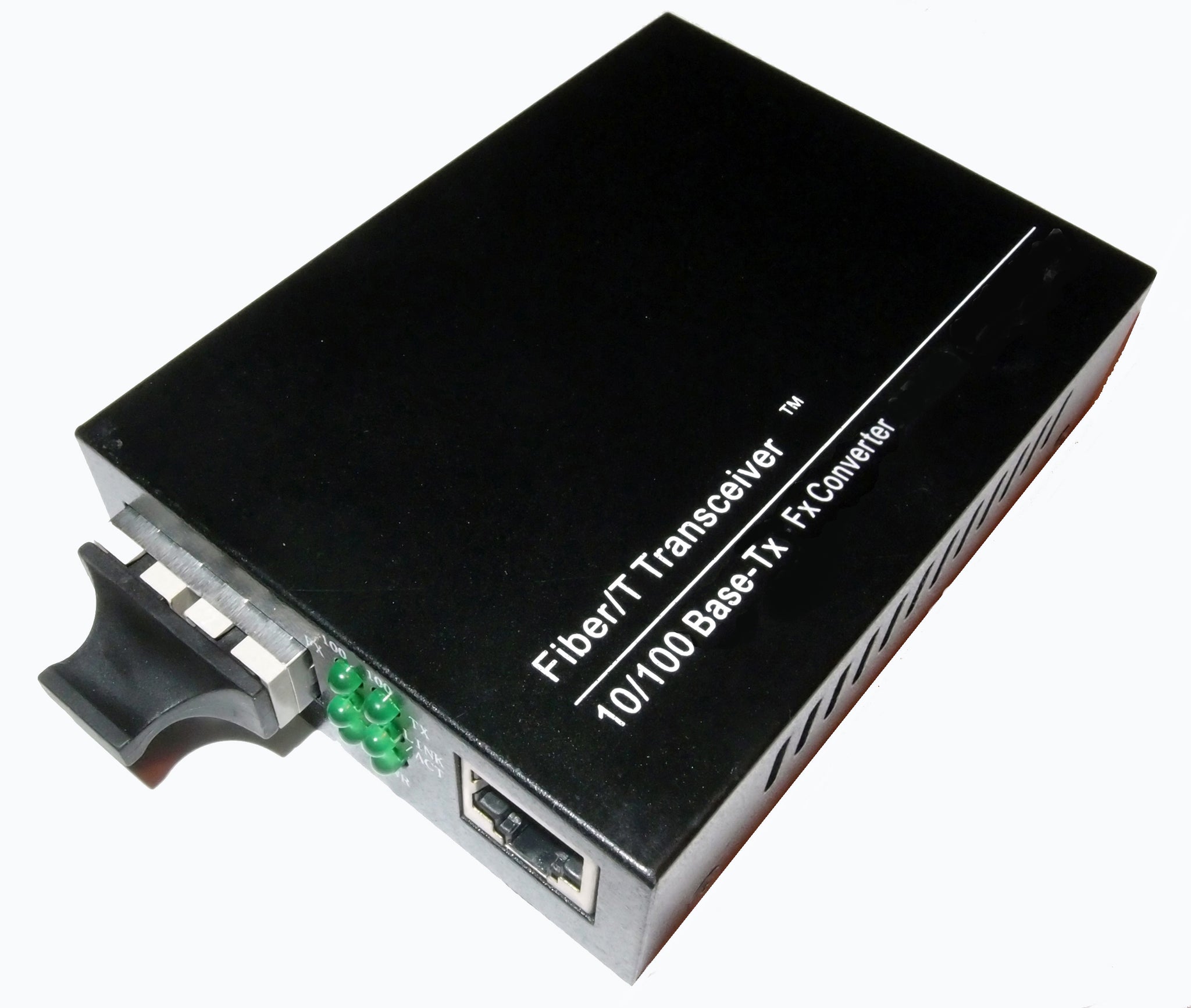

The Dynamode  INSIXTMC100SC is a compact, reliable Fibre Optic Media converter which allows LAN conversion from regular Cat5, Cat5e and Cat6 to longer Fibre Optic links, up to around 2Km together with total immunity from electrical interference. Ideal for when you need extended reach for LAN ports to Servers, PCs, Switches and other network devices.

No drivers or configuration needed, simply plug your existing RJ45 cable into one end, and connect your SC duplex fibre the other and your ready to go. On-board LEDs give feedback on the link.

Reliable 24/7, ideal for businesses, branch offices and other areas that need extended reach LAN connectivity both inside and out.

Key Features

Convert up to 100Mbps to 100Mbps Fibre

Plug n' Play - instant setup with 24/7 reliability

Extends your LAN to up to 2000 metres instantly

Onboard LEDs show instant connection status

Backed up by Dynamode's exclusive 3-year warranty
Applications

Create instant, long distance Fast Ethernet links to remote offices, IT rooms or IP CCTV equipment, inside or out

Ideal for businesses, remote offices, IT centres and home workers needing a remote LAN connection outside the house

Immune to electrical noise, so ideal for challenging RF noise areas

Technical Specifications
Warranty                 Dynamode 3-Year Warranty

Compliance            IEEE802, 802.3u, 100BaseFX

Form Factor           Palm-sized, externally powered

Design                    RiSC chipset, silent operation

Ports                       1x STP RJ45, 1x SC Duplex Fibre Port

Fibre Mode             62.5/125, 50/125, 100/140 Multimode

Fibre Distance       Up to 2Km (2000 metres)

Compatibility         Cat5, Cat5e, Cat6, UTP and STP cables

Status LEDs            Link, Status, Duplex, Speed

Power Supply         External Switch Mode 110-240VAC
Product Info

SKU/MPN: INSIXTMC100SC

EAN: 8400800019455

Weight:

Dimensions: 26x71x97mm (approx.)

Supplied With

INSIXTMC100SC   100BaseFX Media Converter

External Power Supply

User Guide

Files

Datasheet INSIXTMC100SC - Click Here


* Specifications and product design are subject to change. E&OE.

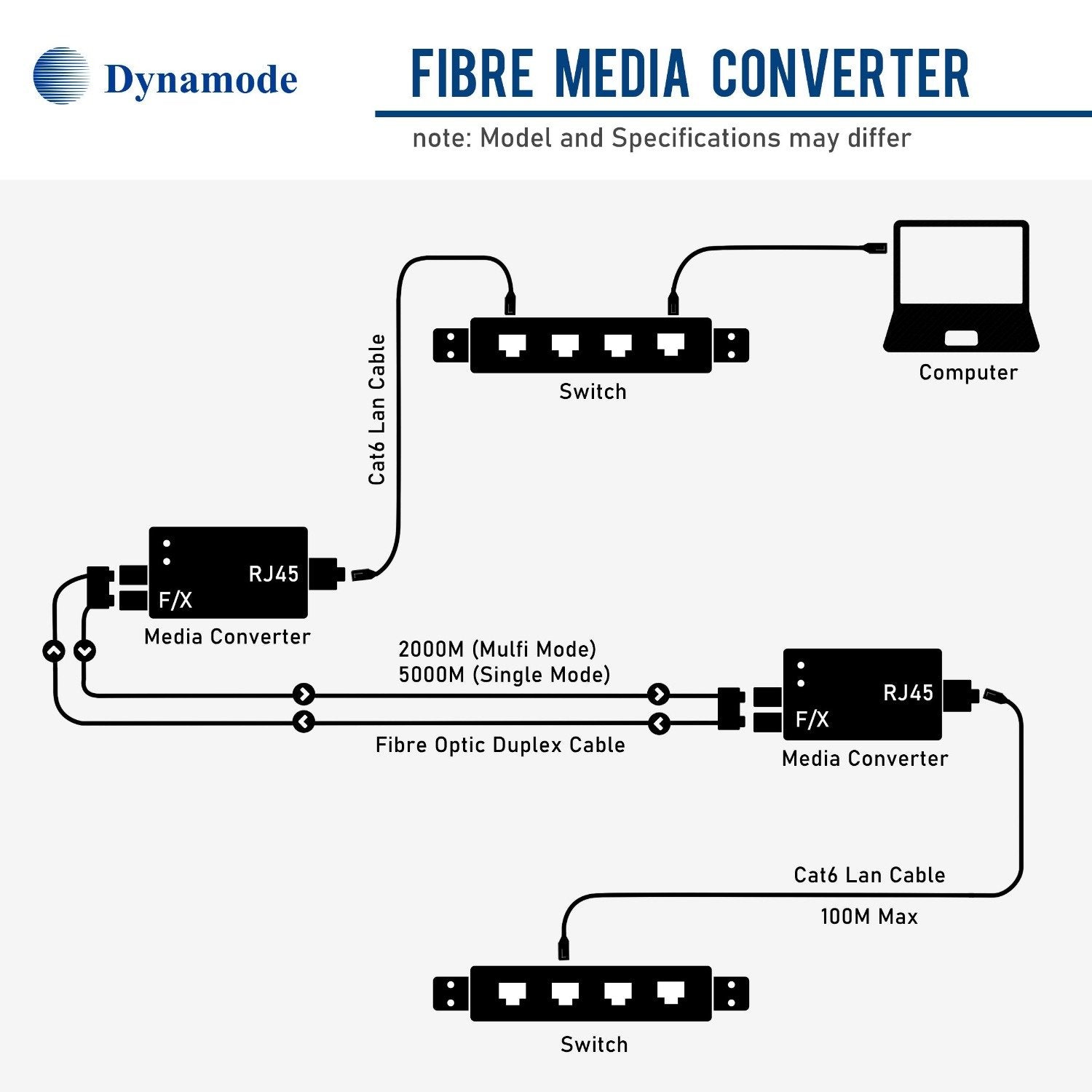

What's a Media Converter? The clues in the name. It converts electrical signals on a regular copper RJ45 cable and changes it to light signals and vice versa. Light signals in fibre have the advantage of being totally immune to electrical noise plus fibre LAN cables can extended to 2Km or more, when copper LAN cables are restricted to 100m.
