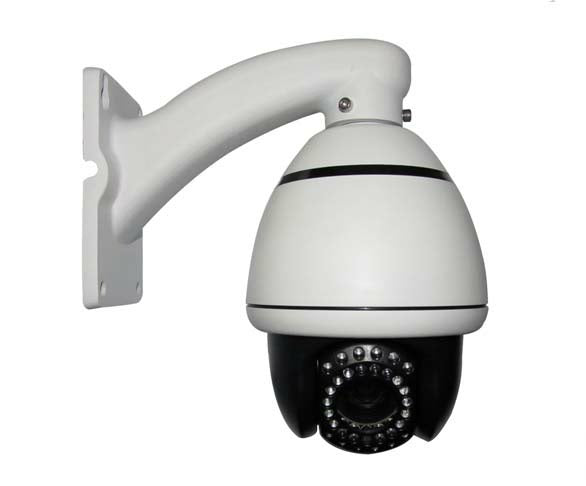

700TVL (SONY CCD) Speed Dome CCTV Camera - 40M IR - Varifocal - Internal Use

Available:

£139.00

Specification

Model	SC-PTZ-SD
Camera
Camera	SONY Super HAD II CCD+Effio‐E 700TVL
Image Sensor	1/3" SONY EFFIO‐E CCD
Effective Pixels	Approx. 520,000 Pixels
Horizontal Resolution	650 TVL
TV System	PAL/NTSC
Min. Illumination	Colour: 0.01Lux B & W ：0.001Lux
S/N Ratio	More Than 50 dB
Gamma Correction	0.45
Video Output	Composite Signal (1.0Vp‐p, 75Ω)
Lens
Focus Length	3.8‐38mm (10x Optical Zoom)
Max Aperature	F1.8 ~ F2.9
Angle of View (H)	51.2° ~ 4.27°
Focus Control	Auto / Manual
Auto Iris Support	Yes
PTZ
Pan/Tilt Range	Pan: 0° ~ 360° Endless; Tilt: 0°~90° Flip / Auto flip 180°
Manual Control Speed	Pan: 0.1° ~ 250°/s; Tilt: 0.1° ~200°/s
Preset Point	256, 4 pattern scans
Tour	8 Programable
Preset Speed	40°/Sec
Accuracy	±0.10°
Auxiliary Interface
RS485	1 Port
Address	0~255 Default: 1 (User Adjustable)
Baudrate	2400; 4800; 9600; 19200 Default: 2400 (User Adjustable)
Protocol	Pelco_D, Pelco_P
Night Vision
Infrared LED	￠8X30pcs
Infrared Distance	40 Meters
IR Status	Under 10 Lux By CDS
IR Power On	CDS Auto Control
Camera Features
White Balance	Auto
Gain Control	Auto
Privacy Mask	4 privacy masking regions
Digital Zoom	10×
General
Installation	Indoor
Heater	No
Fans	No
Operation Temperature	10℃ ~ +50℃ RH95% Max
Storage Temperature	‐20℃ ~ +60℃ RH95% Max
Power Source	DC12V 3A
Dimensions	Ø127.5x165.1mm
Weight	2.0Kgs
