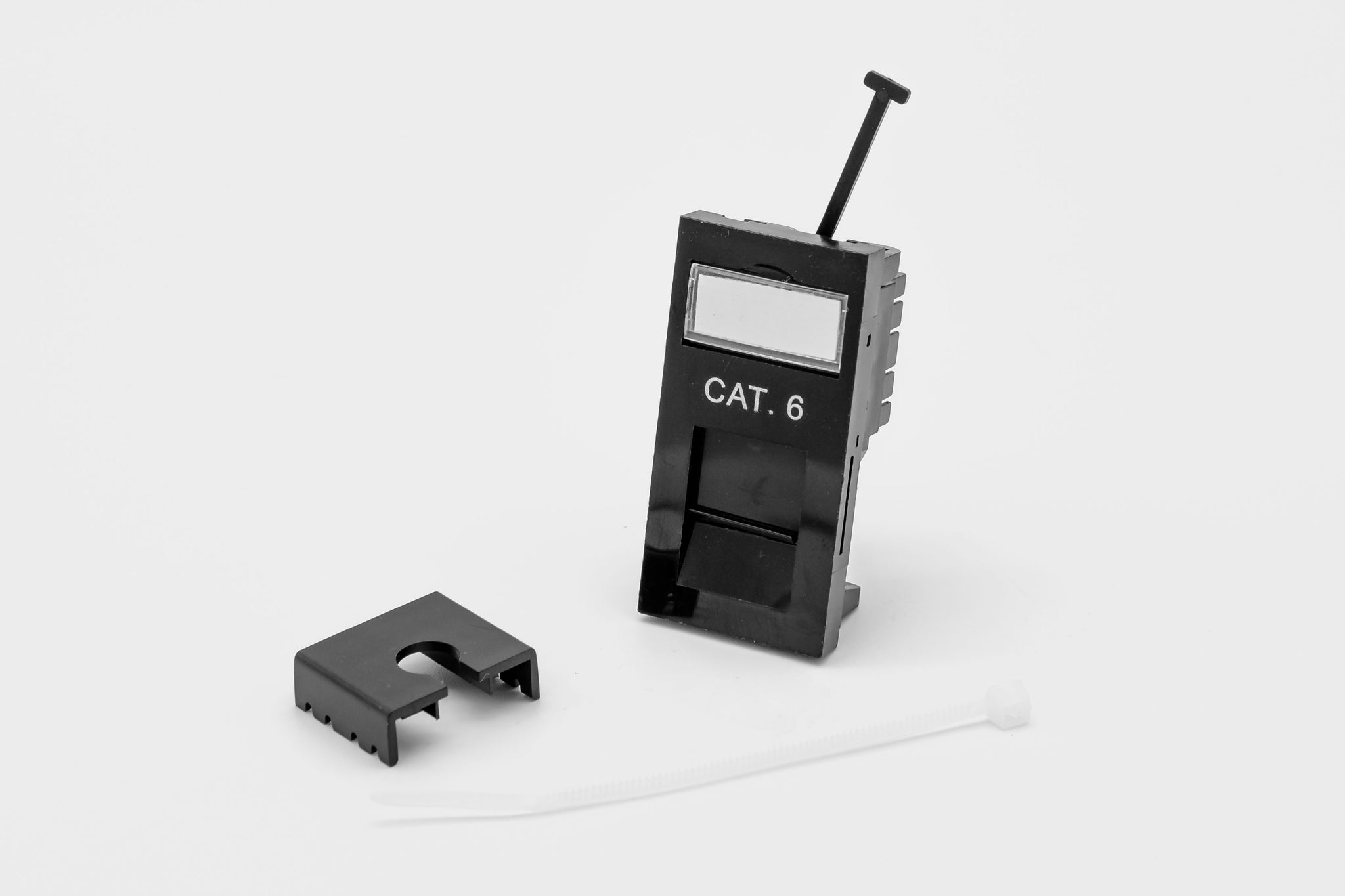

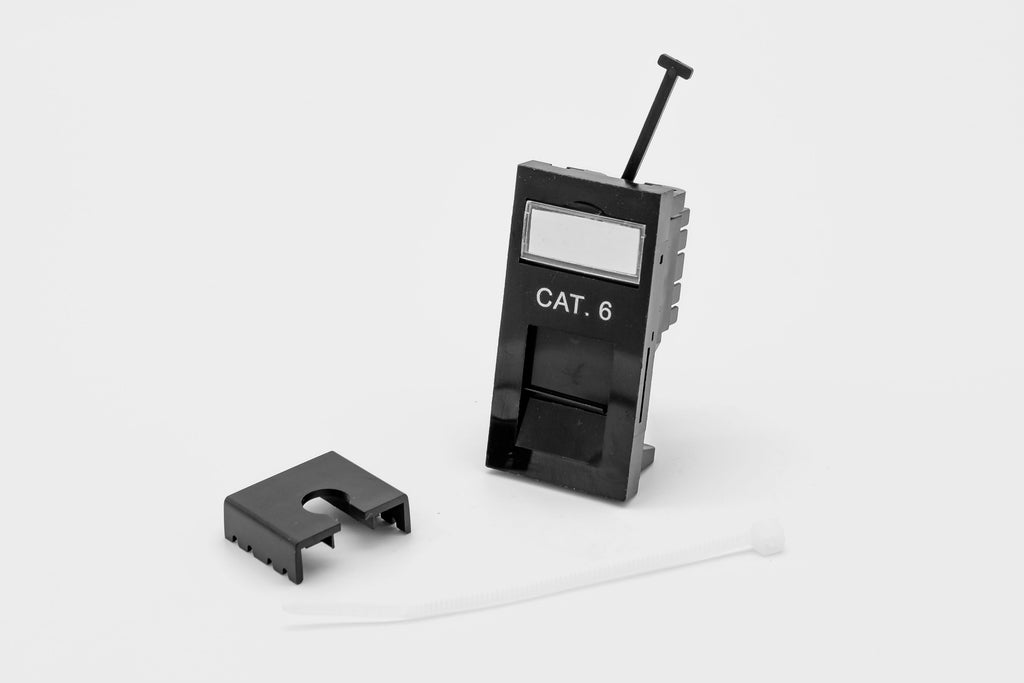

Low Profile CAT6 RJ45 Module (w/Flip Name Plate) - Black (LP-MODC6-BLK)
Rated 3.5/5 based on 11 customer reviews

Low Profile CAT6 RJ45 Module (w/Flip Name Plate) - Black (LP-MODC6-BLK)

  • P/N: LP-MODC6-BLK
Available:
£0.99 £1.22

Description

The LP-MODC6-BLK is a high quality ABS plastic standard fit Data Module with performance up to Category 6. Black in colour, the LP-MODC6-BLK also comes with a spring-loaded shutter which fully protects the RJ45 socket from dust ingress and thus assures good electric contact with the RJ45 Plug.

Fully TIA-ETA-568A/B compatible and ideal for both Voice and Data applications up to 1000BaseT (Gigabit), the module comes complete with a ‘windowed’ ID system allowing either handwritten or automated numbering of the outlet. Comes complete with rear cable management tidy.

FEATURES

• EIA/TIA 568-A/B compliance
• IEEE 802.3x compatible
• 1000 Base-TX Ready
• Full shuttered protection; spring loaded

Technical Specifications

Category 6 standard RJ45 UTP data outlet

Quality design using black High Gloss ABS plastic

Meets or exceeds current ISO-11801-E, ANSI/TIA-568-C

Gigabit (1000BaseTX) and Fast Ethernet compatible

High-quality rear KATT IDC, for Krone(tm)2A tooling

Spring-loaded RJ45 dust protected door and ID window

Standard T568A and T568B IDC colour coding terminals

Ideal for data, VoiP, PBX and LAN installations

Supplied with cable tie and thumb punchdown cap

Dimensions: 2.5cm(W) x 5cm (H) x 2cm (D) approx.

Files

LP-MODC6-BLK Data Sheet -Click Here
