Low Profile CAT6 RJ45 Module w/Flip Name Plate (LP-MODC6)
Rated 3.5/5 based on 11 customer reviews

Low Profile CAT6 RJ45 Module w/Flip Name Plate (LP-MODC6)

  • P/N: LP-MODC6
Available: In Stock
£1.68

Description

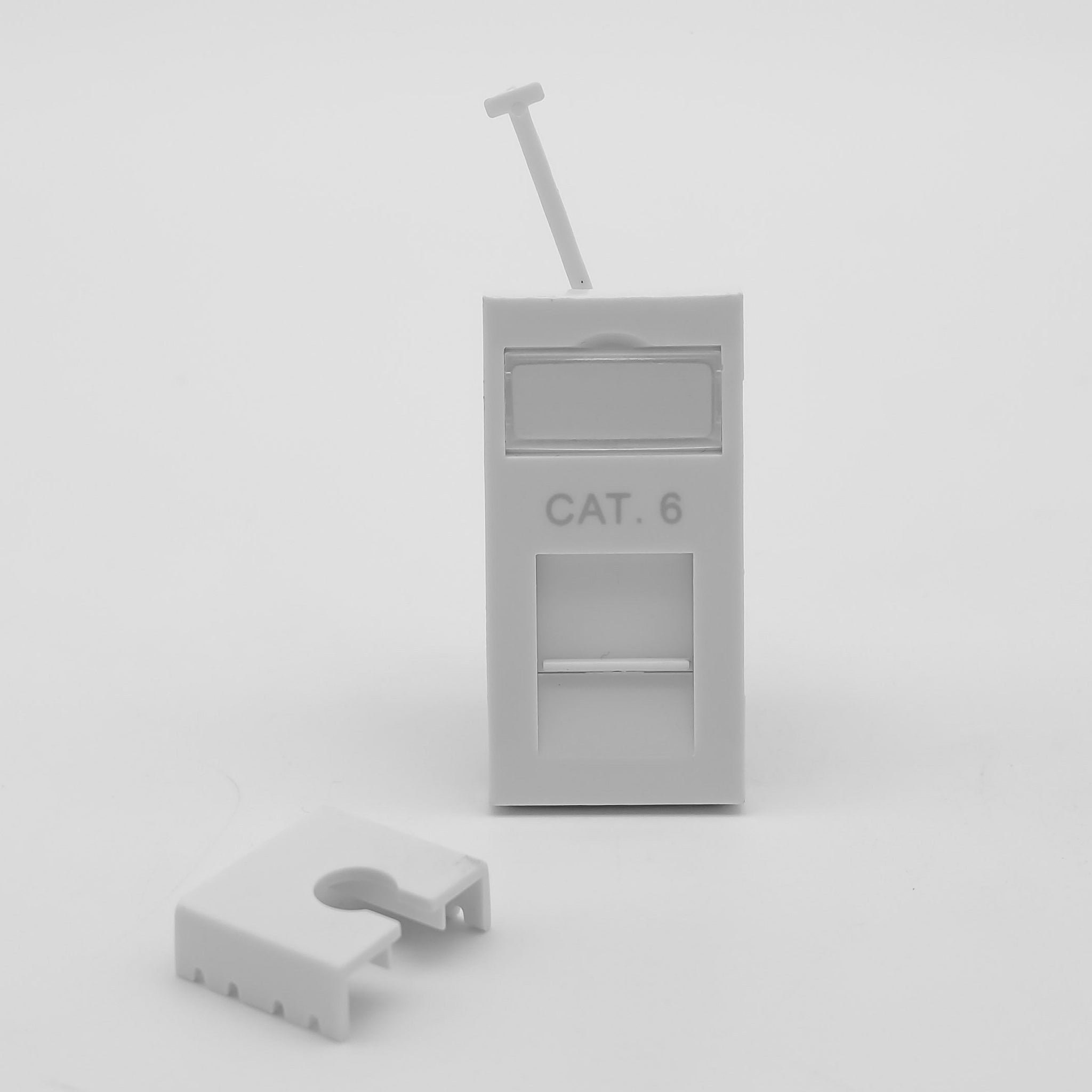

The LP-MODC6 is a high quality ABS plastic standard fit Data Module with performance up to Category 6. Pure white in colour, the LP-MODC6 also comes with a spring-loaded shutter which fully protects the RJ45 socket from dust ingress and thus assures good electric contact with the RJ45 Plug.

Fully TIA-ETA-568A/B compatible and ideal for both Voice and Data applications up to 1000BaseT (Gigabit), the module comes complete with a ‘windowed’ ID system allowing either handwritten or automated numbering of the outlet. Comes complete with rear cable management tidy.

KEY FEATURES

• EIA/TIA 568-A/B compliance
• IEEE 802.3x compatible
• 1000 Base-TX Ready
• Full shuttered protection; spring loaded

Technical Specifications:

Certified Category 6 UTP Data Module

Certified Gigabit (1000BaseT) compliant

350 MHz Frequency for future Protocol support

ANSI/TIA-569-B compliant, exceeding ISO-11801

Low NEXT and PSNEXT for improved signal quality

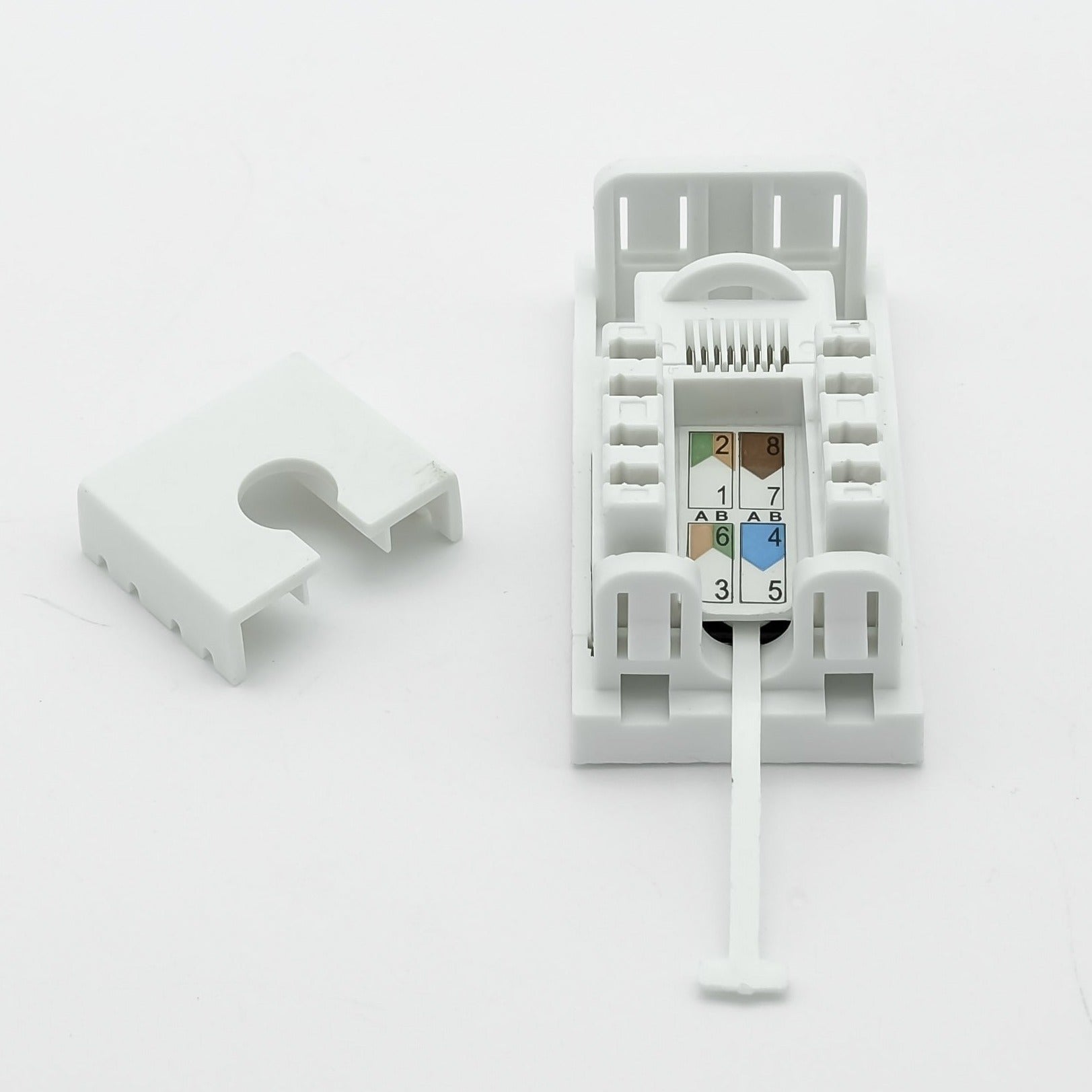

Colour coded 568-A/B rear Krone® IDC: 22-26 Solid AWG

High quality UTP 8-Wire RJ45 socket with ID Window

Spring loaded shutter for dust ingress protection

Fully backward 10BaseT, 100BaseT, ATM155 complaint

Ideal for LMS Data Faceplates: Comes with Cable Tidy

Dimensions: 2.5cm(W)x5cm(H)x2cm(D)

Product Info

SKU/MPN: LP-MODC6

EAN: 8400800031952

Dimensions: 2.5cm(W) x 5cm(H) x 2cm(D) approx.

DOCUMENTS

LP-MOC6 Data Sheet - Click Here
