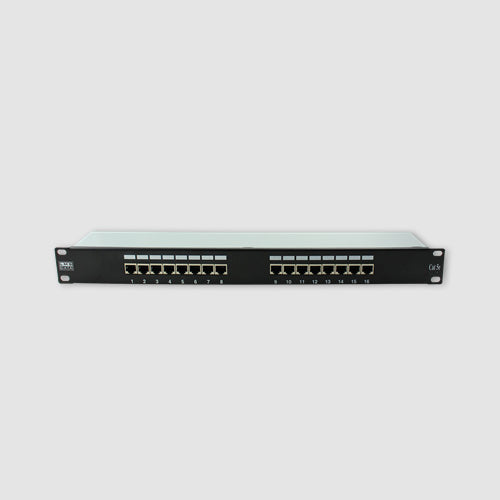

1U 19" 16 Port CAT5E Network RJ45 Vertical Shielded Patch Panel (STP)
Ease of use both pre and post installation has been well catered with the PPAN-16-SHD. Featuring vertical KATT robust IDCs in a vertical punch-down PCB on the rear, fully adhering to TIA/EIA-568-A/B termination, supporting 22AWG to 26AWG core sizes. Being Cat5e compliant means it supports all current and emerging networking standards including Gigabit Ethernet (1000BaseT) and lower speeds.
1U 19" 16 Port CAT5E Network RJ45 Vertical Shielded Patch Panel (STP)
- P/N: PPAN-16-SHD
Available:
£35.70
Description
The LMS Data PPAN-16-SHD has fully shielded RJ45 plugs and a fully encased high-performance metal enclosure, reducing ‘electrical smog’ effects and thus reducing or eliminating data packet corruption, no matter what speed your network is running.Ease of use both pre and post installation has been well catered with the PPAN-16-SHD. Featuring vertical KATT robust IDCs in a vertical punch-down PCB on the rear, fully adhering to TIA/EIA-568-A/B termination, supporting 22AWG to 26AWG core sizes. Being Cat5e compliant means it supports all current and emerging networking standards including Gigabit Ethernet (1000BaseT) and lower speeds.
Technical Info
• Class-leading Cat5e/ISO-11801 compliant
• TIA-EIA-568A or B punch down IDC blocks (vertical punch)
• 1U high, fully enclosed metal chassis for security and RF protection
• Rear built-in cable management tabs
Technical Info
SKU/MPN: PPAN-16-SHD
EAN: 8400800032157
Weight:
Dimensions:
