Description
Product description

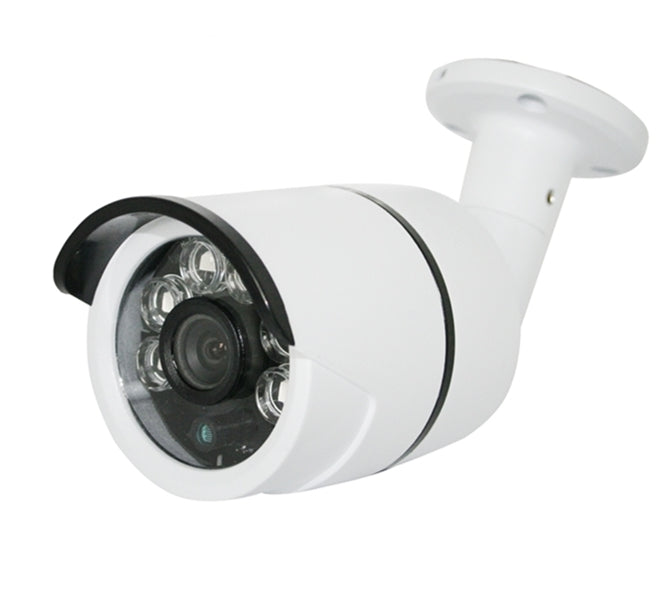

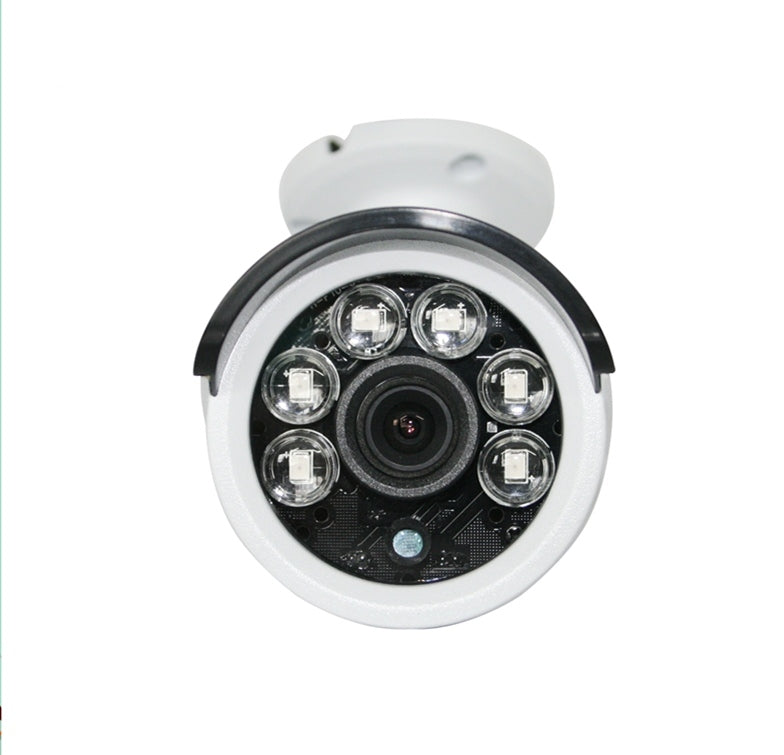

- IR Waterproof Camera IP66
- Board Lens 3.6mm/F2.0
- 6pcs Array leds,30m
- Includes bracket
- Dimension:155X62X63mm
- Weight：6kg
- The transmission distance over 500 meters;
Production specification
|
Model |
CAM-MAV-933Q3 |
|
System |
PAL/NTSC |
|
Scanning System |
2：1 Interlace |
|
Image Device |
1/3’’ CMOS（K03+8538M）Low-Illumination |
|
Scanning Frequency |
50HZ（PAL）/60HZ（NTSC） |
|
Synchronization |
Internal |
|
Effective Pixels |
5.0megapixel (2592×1944P) |
|
Video Output |
AHD（1.0VP） |
|
Color |
Color to B/W (External drive) |
|
S/N Ratio |
≥46.4db（Max 67.3db） |
|
Min illumination |
0.1LUX（0LUX IR on） |
|
IR distance |
30M |
|
IR leds |
6pcs Array leds |
|
Lens |
Board Lens 3.6mm/F2.0 |
|
OSD |
Optional |
|
E-Shutter |
1/50~1/100,000s |
|
Operation Temperature |
-30℃～+60℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Input Voltage/Current |
DC12V |
|
Storage humidity |
Indoor 85% RH (No condensation) |
|
Power |
Max 500MA |
|
Dimension |
155X62X63mm |
