Description

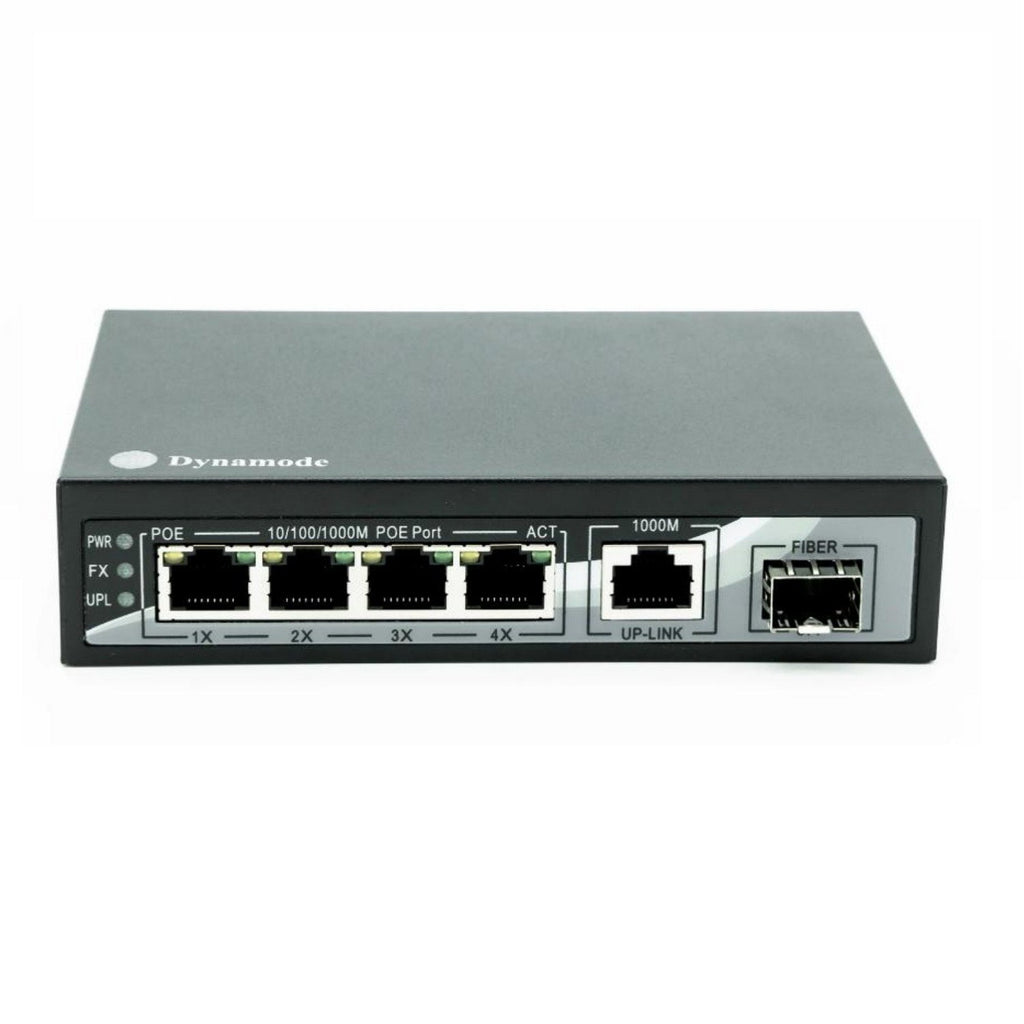

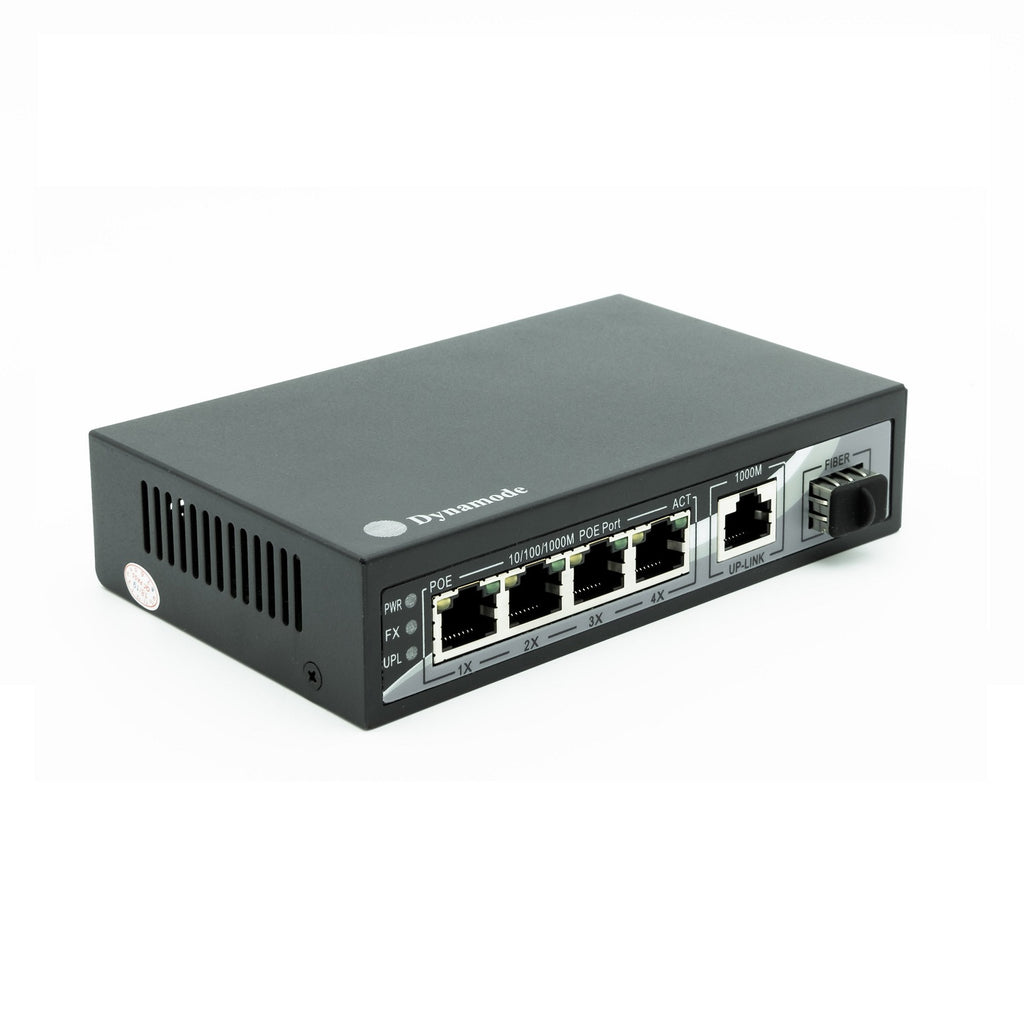

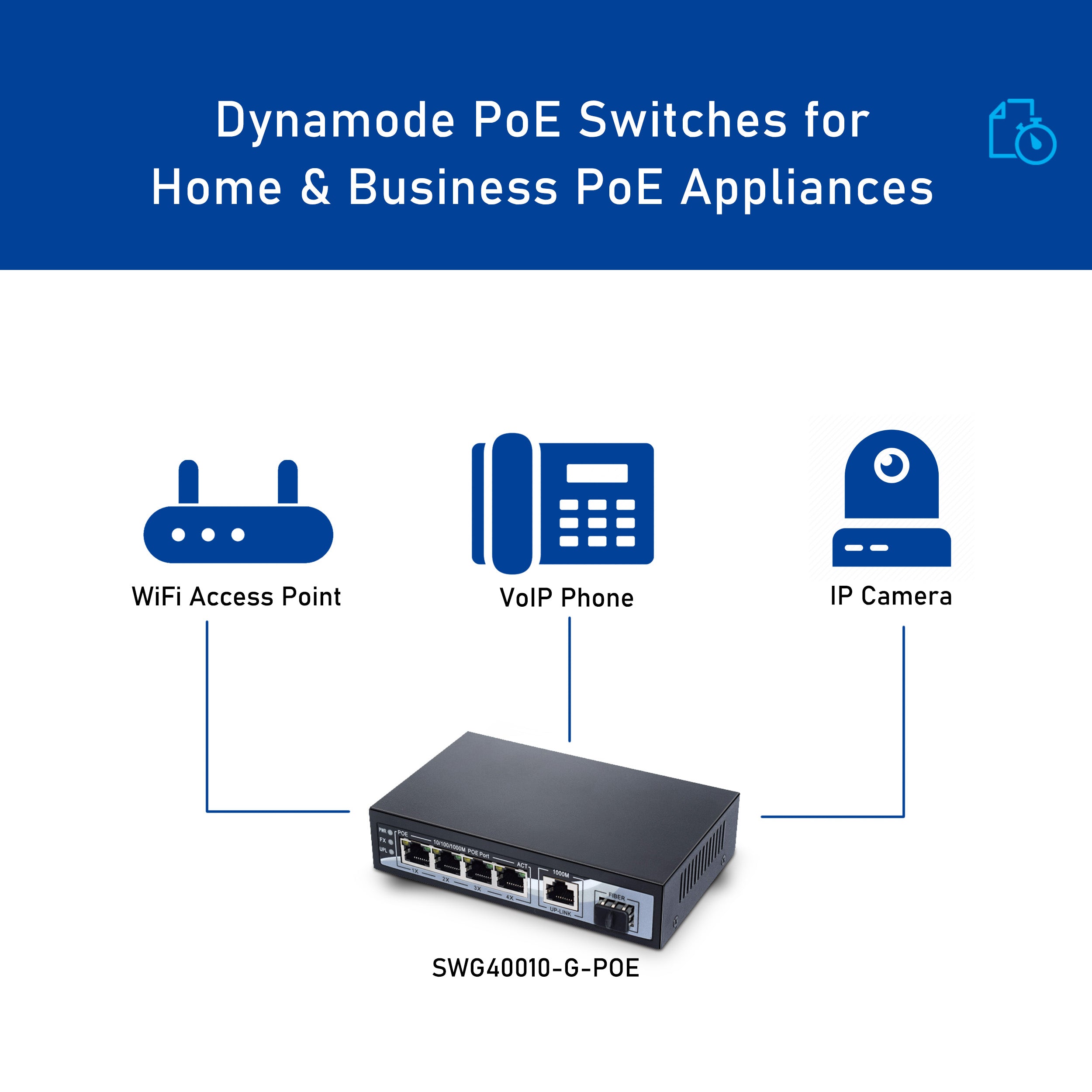

The Dynamode SW40010-G-POE is a 4-Port Gigabit Ethernet PoE Ethernet Switch (Power Over Ethernet Switch) that allows users to instantly connect to PCs, Macs, and other network devices in an instant. Together with PoE on all 4 Ports, you can directly power PoE IP cameras, VoIP phones, and other PoE devices without the need for separate power cables.
With complete compatibility and auto-sensing 10/100/1000Mbps Network speeds in full and half duplex mode coupled, the SW40010-G-POE comes with a dedicated uplink port and an SFP fibre module port. Energy efficient, ideal for work-from-home users, households, and small offices that need an instant network connection.
Key Features:
- 4-Port PoE Ethernet Switch with Gigabit Ethernet up to 1000Mbps speeds
- Power-Over-Ethernet on all 4 Ports (PoE Network Switch)
- Dedicated Fibre SFP module port
- Alloy construction - Desktop or wall mount
- Plug n' Play – just connect to your existing Switch, Router, etc
- Silent and Reliable - Ideal for all your networking devices
- Backed up by Dynamode's exclusive 3-year warranty
Applications:
- Create additional Ethernet connections to your existing Switch and router in both home, SoHo, and office LAN setups
- Ideal for work-from-home users, smart home devices, gamers needing extra network points
- Branch and small offices needing faster networking connections
Product Code:
- SKU/MPN: SW40010-G-POE
- EAN: 8400800037664
- Weight: 1.2Kg approx

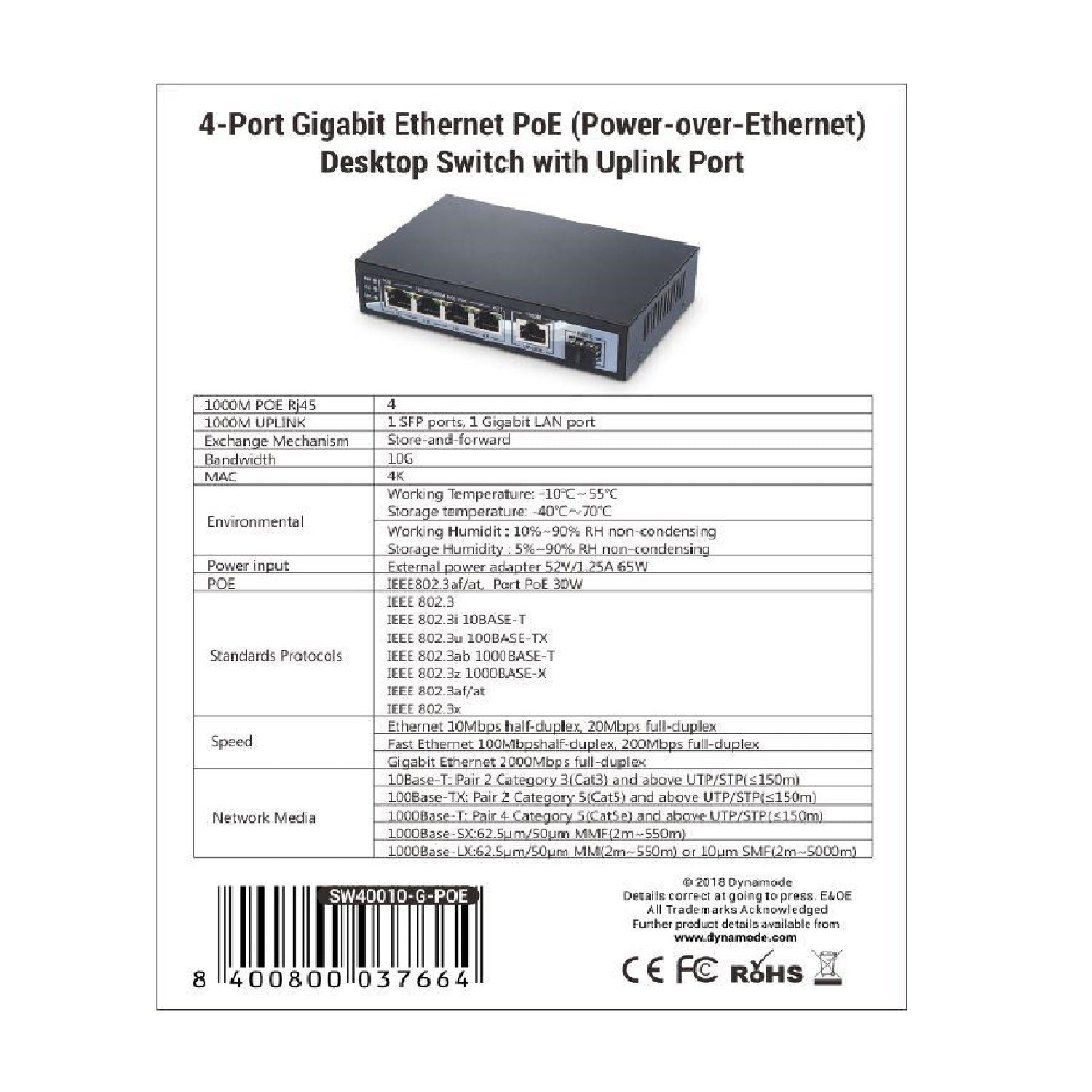

Technical Specifications:
- Warranty: Dynamode 3-Year Warranty
- Compliance: IEEE802, 802.3af, 802.3at
- Port Power: 16-30 Watts / 3-600mA, 48 Watts
- Form Factor: Compact Desktop or Wall Mount
- Design: RiSC chipset, store and forward
- Ports: 4 Port 10/100/1000Mbps auto-sensing
- Uplink Port: 1 Port dedicated uplinks
- SFP Port: 1 Port SFP Fibre module port
- Duplex: Control Full/Half Duplex back pressure
- Compatibility: Cat5, Cat5e, Cat6, UTP and STP
- Status LEDs: 4-Port status for Link, Data, etc
- Power Supply: Internal Switch Mode 110-240VAC
Supplied With:
- SW40010-G-POE 4 Port 10/100/1000 Mbps PoE Ethernet Switch + 1 Uplink + SFP Port
- UK AC power cable
-
User guide
Files:
Go Back to Collection
* Specifications and product design are subject to change. E&OE.
What's a LAN? Local Area Network is your wired Cat5e cabling for PCs, Printers, Servers, IP Cameras and other office Ethernet devices. The Switch can be securely mounted in a standard data cabinet.
