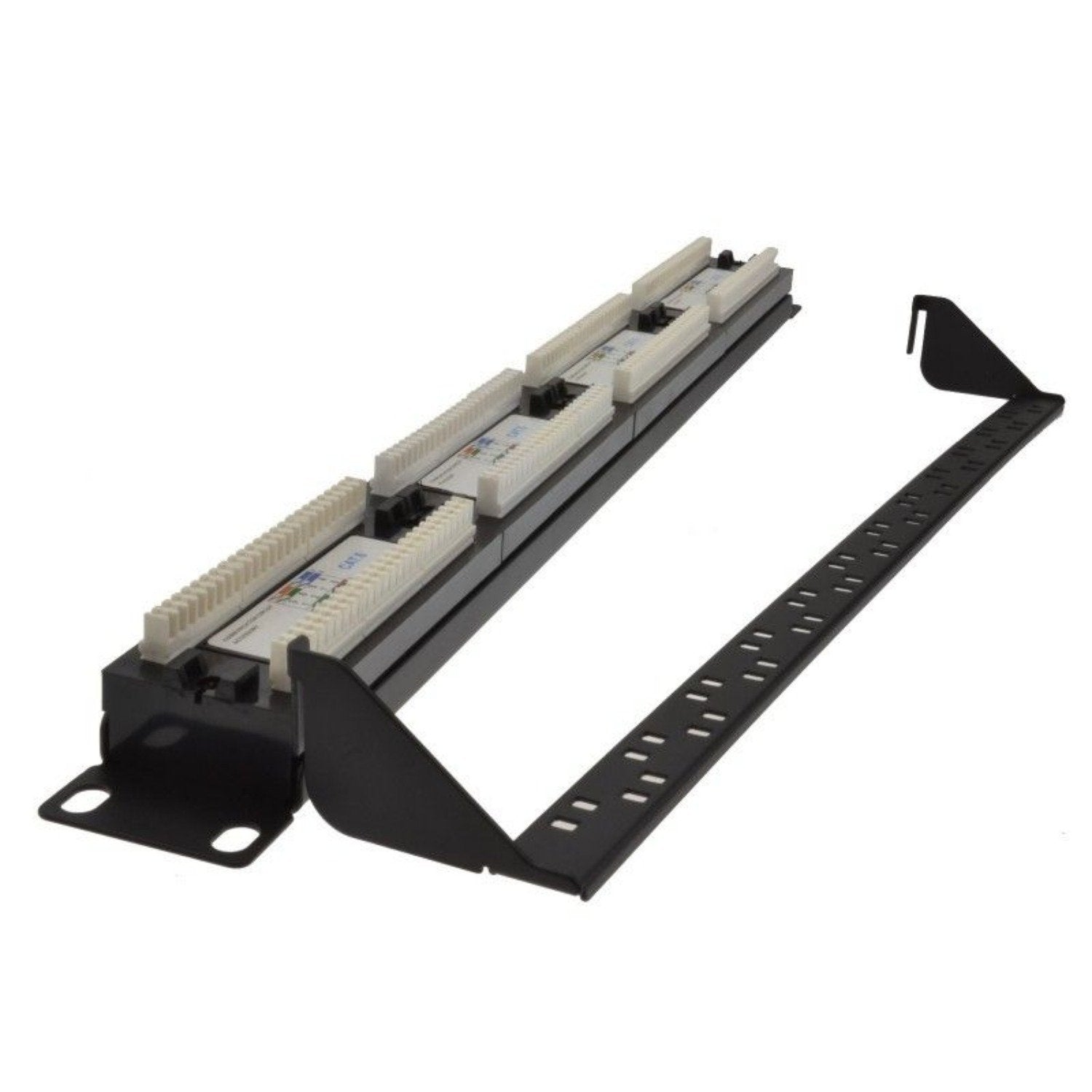

1U 19" 24 Port CAT6 Network RJ45 Patch Panel (UTP) with Back Bar

The new LMS Data PPAN-24-CAT6-N offers performance Category 6 performance for your current and next-generation networking applications, for gigabit Ethernet and advanced telco applications for example.

Industry-standard, dual-personality IDC punch-down for Krone(TM) and 110 toolings, clear color coding for true TIA/ EIA compliance, and long-life RJ45 UTP ports.

Part of the LMS Data 25-year warranty system*, the PPAN-24-CAT6-N is your ideal patching solution for warranted and un-warranted current and next-generation networking, telco, and server applications - at a competitive price point.



Key Feature:

• Certified CAT6 Performance for Gigabit Ethernet

• Popular Krone(tm) KATT Dual Purpose IDC Punchdown

• Removable Rear Cable Management Bar for Cable Anchoring

• Part of the Synthesis 25-Year Warranty Solution



Applications:



• Office, Education, and Home Structured Cabling Installs

• Ideal for Gigabit Ethernet (1000Mbps) Data Networks

• Create fault-tolerant LANs by simply patching ports



Specifications:

• Port Count: 24 Ports UTP
• Dimensions: 1U 19-Inch Design Format

• Conformance: TIA-EIA-568A/568-B2.1 Coded IDC

• Performance: 10/100/1000Mbps Gigabit Compliance

• RJ45/IDC Connects: Nickel and Phosphor Bronze

• Port Identification: Numbered and Bespoke ID Marker

• Fixings: Supplied M6 Nuts and Bolts

  * Specifications and product design are subject to change. E&OE.

* Apply for a cost-free LMS Data 25-year warranty system when buying all LMS DATA point-to-point products. (Module, Patch Panel & Solid Cable)

Technical Info:

• SKU/MPN: PPAN-24-CAT6-N
• EAN: 8400800036834
• Weight: 0.5Kg approx



Files:

• PPAN-24-CAT6-N Data Sheet - Click Here



Check Out Our Range of Structured Cabling System Accessories >> Click Here

Go Back to Collection

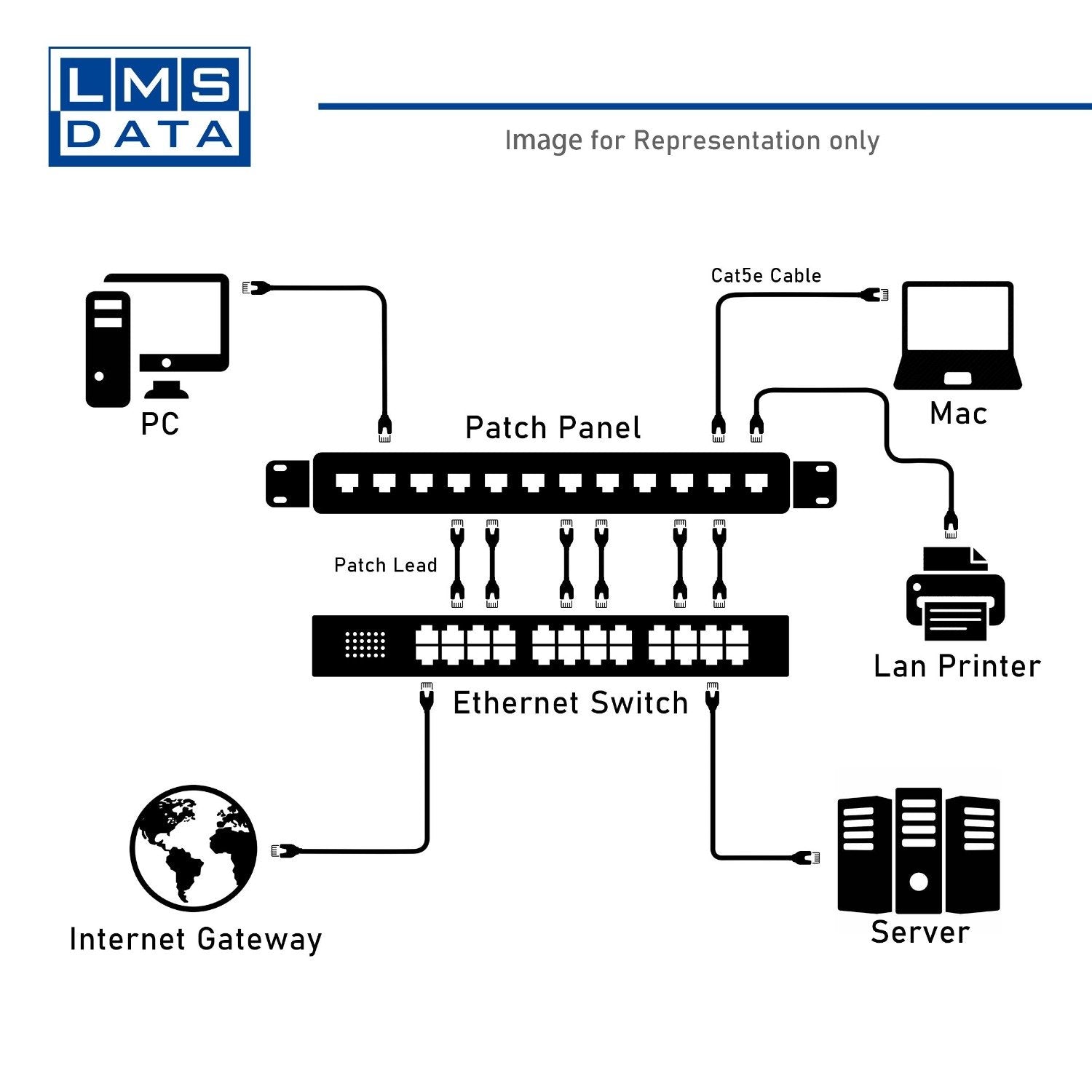

What's a Patch Panel? Designed in such a way that smaller length, separate patch leads can be plugged from an installed Switch to the patch panel. That way, if a Ethernet port fails, its just simply can be 'patched' to another port. Ideal for when you need to re-establish LAN links and to wall data outlets.
