100Base-T to 100BASE-FX Singlemode Fibre Media Converter, SC Connector (Upto 25000m)
Rated 3.5/5 based on 11 customer reviews

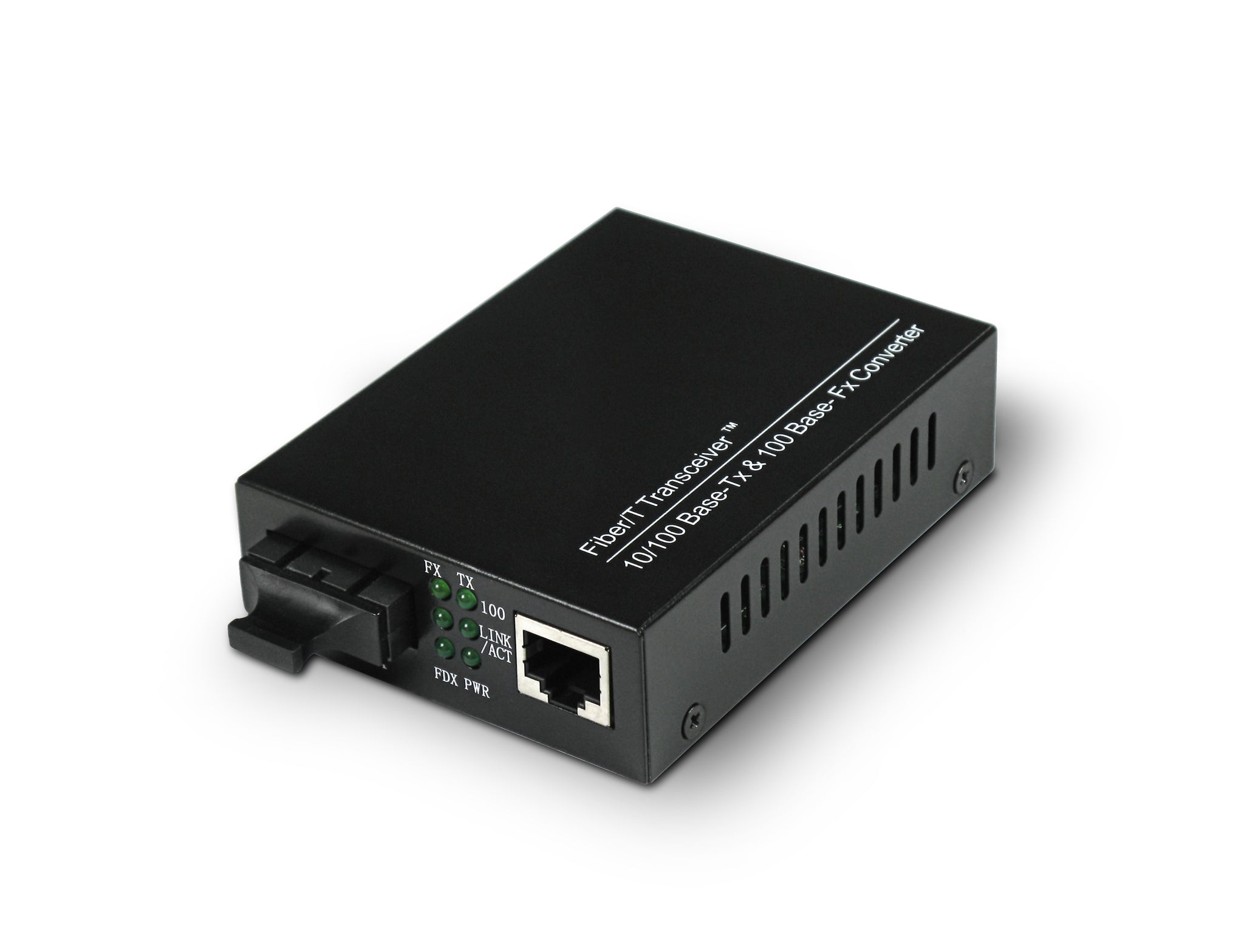

100Base-T to 100BASE-FX Singlemode Fibre Media Converter, SC Connector (Upto 25000m)

  • P/N: INSIXTMC100SC-S
Available: In Stock
£20.25

Description

Adaptive Communication Technologies - Reliable Long-Range Single-mode Fibre Conversion

Looking for a reliable but cost-effective singlemode fibre optic media converter for your fast ethernet applications?

The new INSIXTMC100SC-S is a small- format factor, low power media converter for singlemode 9/125 or 10/125micron fibre which an approximate range of 25Km, allowing extended fast ethernet applications, building to building communications and of course broadcast/ AV applications with zero effect with regards to external RF and earthing potentials, which can cause havoc with conventional copper based cabling.

Using a standard SC duplex fibre connector, the INSIXTMC100SC-S features hot swap support, IEEE802.1Q and SPANNING TREE support for better fault tolerance and looping control.

Extended reliability thanks to enhanced SMT technology and of course full status LEDs for network and connection status via its standard STP RJ-45 connector

Specifications

  • Singlemode to 10/100BaseFX Media Converter

  • Supports 8.3/125, 8.75/125, 9/125 & 10/125 micron*

  • Wavelength: 1310nm Distance: 25Km approx

  • Optical Power: -7 to -15dbm, Sensitivity: < or = 35dbm

  • Supports 802.3, 803.3u, 802.3X full and half duplex

  • High-performance 1.4Gbps memory bandwidth

  • Enhanced 2M buffer and auto MDI/MDI-X swap-over

  • Supports UTP and FTP RJ45, Cat5, Cat5e and Cat6

  • Low-power external power supply 5VDC @ 1 Amp

  • * Check fibre cable compatibility from your cable vendor
    Technical Info

    SKU/MPN: INSIXTMC100SC-S

    EAN: 8400800032973

    Weight: 0.34kg

    Dimensions: Packaging: 22 (L) x 12.5 (W) x 6 (D) cm

    Files

    Datasheet - INSIXTMC100SC-S.pdf
