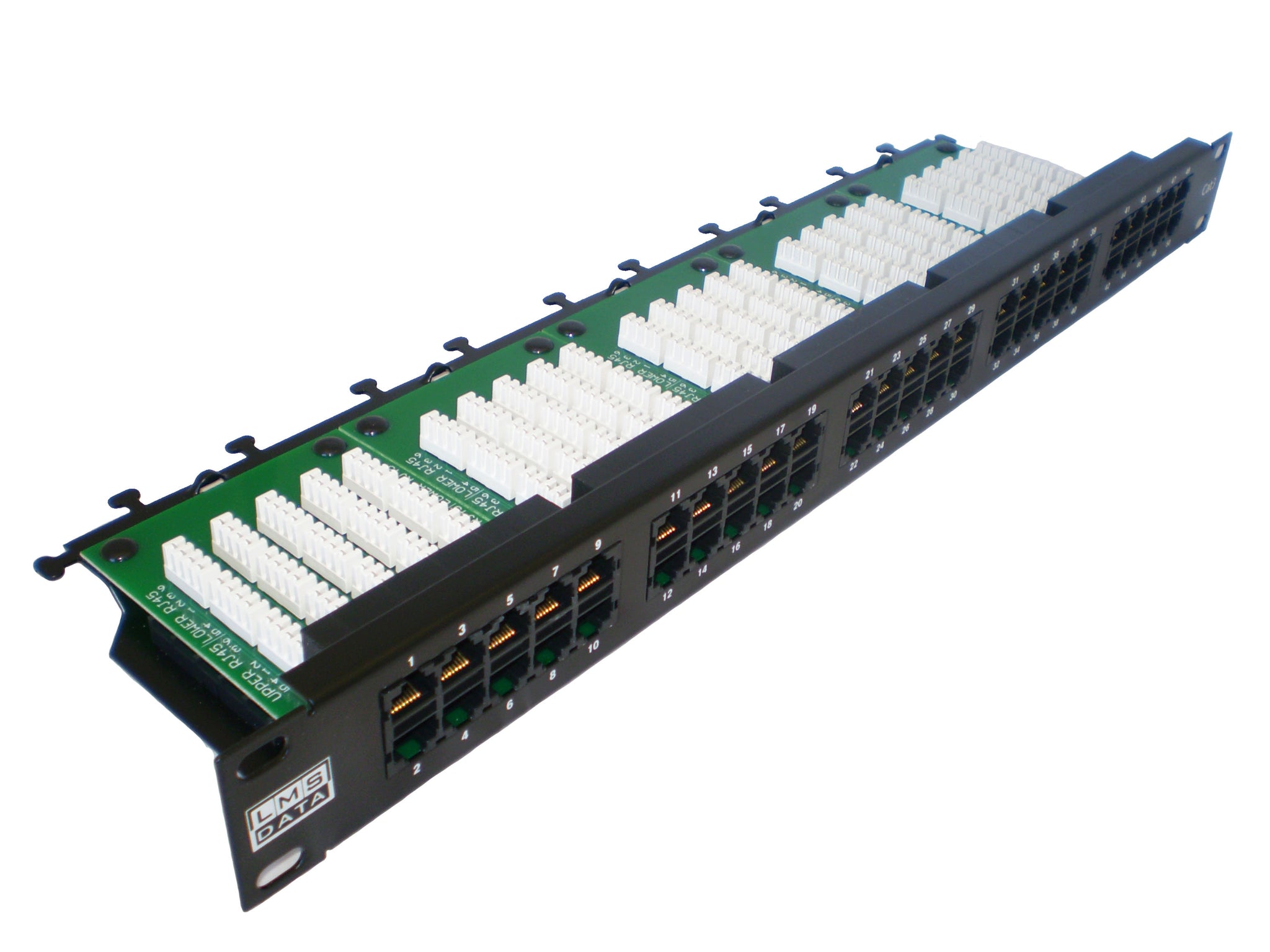

2U 19" 50 Port CAT3/TELEPHONE - Patch Panel (Dual Use) - 4 Pin (UTP)
Rated 3.5/5 based on 11 customer reviews

2U 19" 50 Port CAT3/TELEPHONE - Patch Panel (Dual Use) - 4 Pin (UTP)

  • P/N: PPAN-50-T-4P
Available: In Stock


The Cost-Effective Telco Patching Panel

Offering quality construction and performance in the world of Telecommunications Patching for your Telco and low bandwidth networking applications.

The PPAN series are a fully featured Telco Patch Panel with FCC approved outlets with full technical adherence to ISO/IEC-11801 specifications. Integral gold-plated connections and over a 750 insertion life on the Ports, the PPAN series is your ideal choice

What’s more, the Krone® type IDC connectors on the horizontally mounted IDC have an excellent re-insertion life of over 200 cycles and can accommodate 22-26 AWG cables with ease. Fully connector numeric IDs are screen printed also for quick punch down.

High-density 50-Way 1U high design to maximise your Enclosure space.


  • 50-Way 1U High, 19” Wide Form Factor

  • Ideal for Telco and CAT3 type low bandwidth applications

  • Certified to ISO/IEC-11801 specifications, 4 pin

  • Krone® style rear horizontal IDC with 200+ insertion cycle

  • Gold plated sockets for improved data flow and reduced resistance

  • 22-26AWG Data Cable compatible

  • Insulation resistance approx. 1000Mohms

  • Contact resistance approx. 7Mohms

  • Integral rear cable management anchor points

  • Quality metal casing with front Port Numbering

  • Technical Info

    SKU/MPN: 8400800032225

    EAN: PPAN-50-T-4P




    Datasheet -
