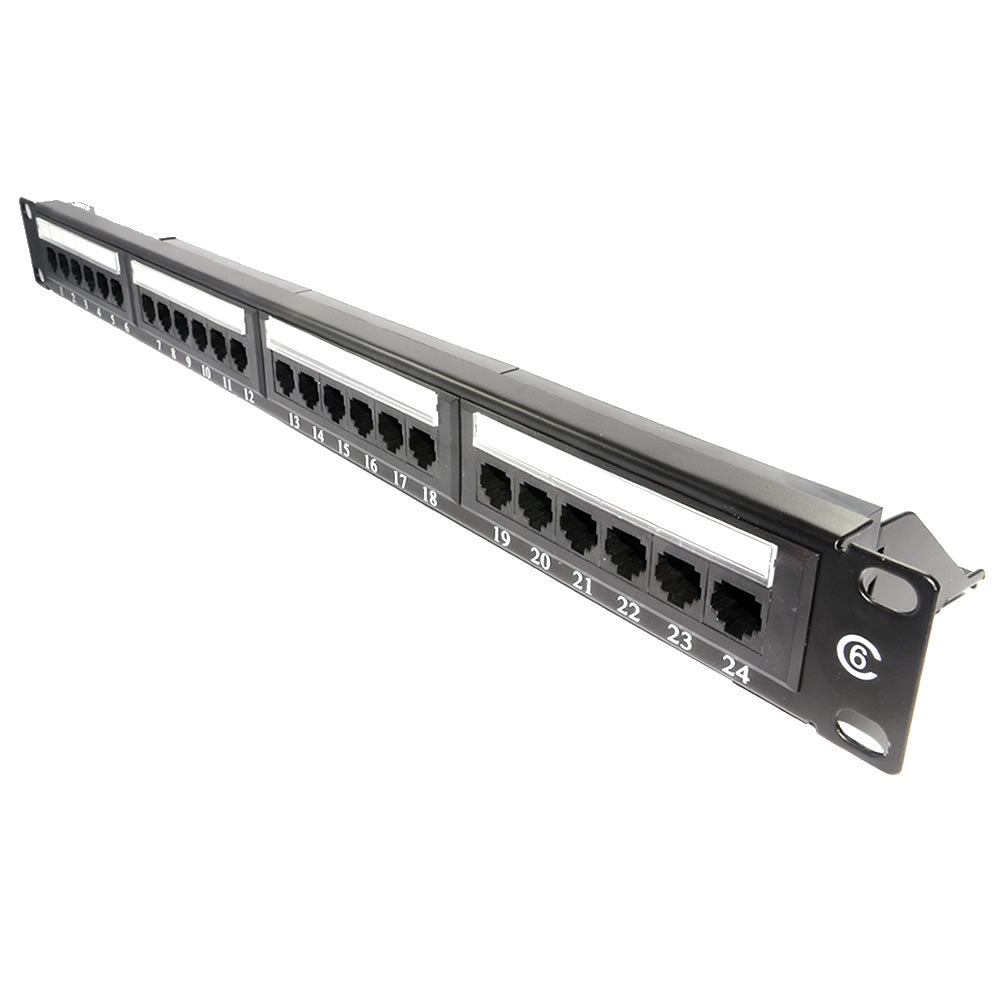

1U 19" 24 Port CAT6 Network RJ45 Patch Panel (UTP) with Back Bar (PPAN-24-CAT6-N)
Rated 3.5/5 based on 11 customer reviews

1U 19" 24 Port CAT6 Network RJ45 Patch Panel (UTP) with Back Bar (PPAN-24-CAT6-N)

  • P/N: PPAN-24-CAT6-N
Available: In Stock
£14.95 £22.43

Description

The new LMS Data PPAN-24-CAT6-N offers performance Category 6 performance for your current and next generation networking applications, for gigabit Ethernet and advanced telco applications for example.

Industry standard, dual-personality IDC punchdown for Krone(tm) and 110 tooling, clear colour coding for true TIA/ EIA compliance and long life RJ45 UTP ports.

Part of the LMS Data 25-year warranty system*, the PPAN-24-CAT6-N is your ideal patching solution for warranted and un-warranted current and next generation networking, telco and server applications - at a competitive price point.



Key Features

Certified CAT6 Performance for Gigabit Ethernet

Popular Krone(tm) KATT Dual Purpose IDC Punchdown

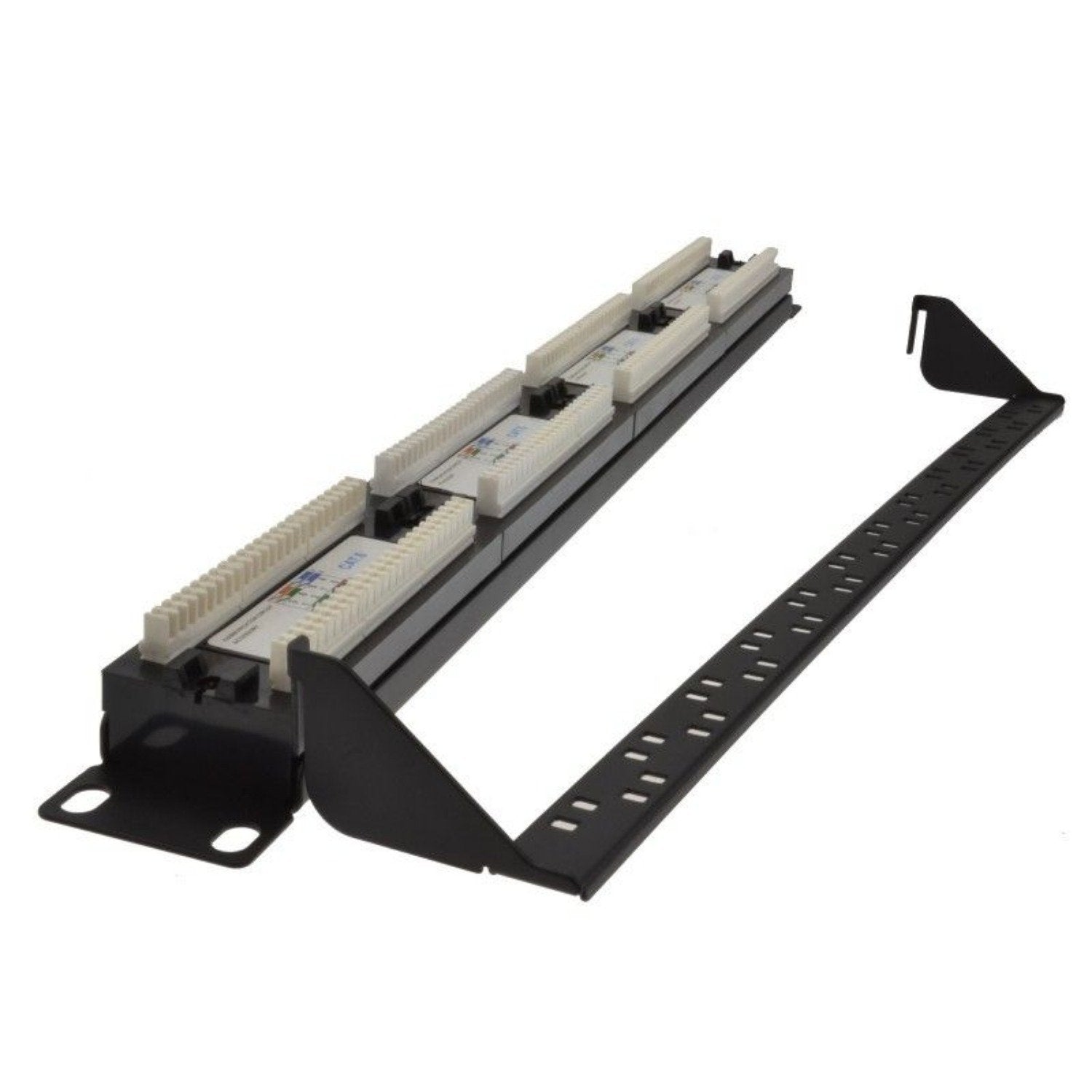

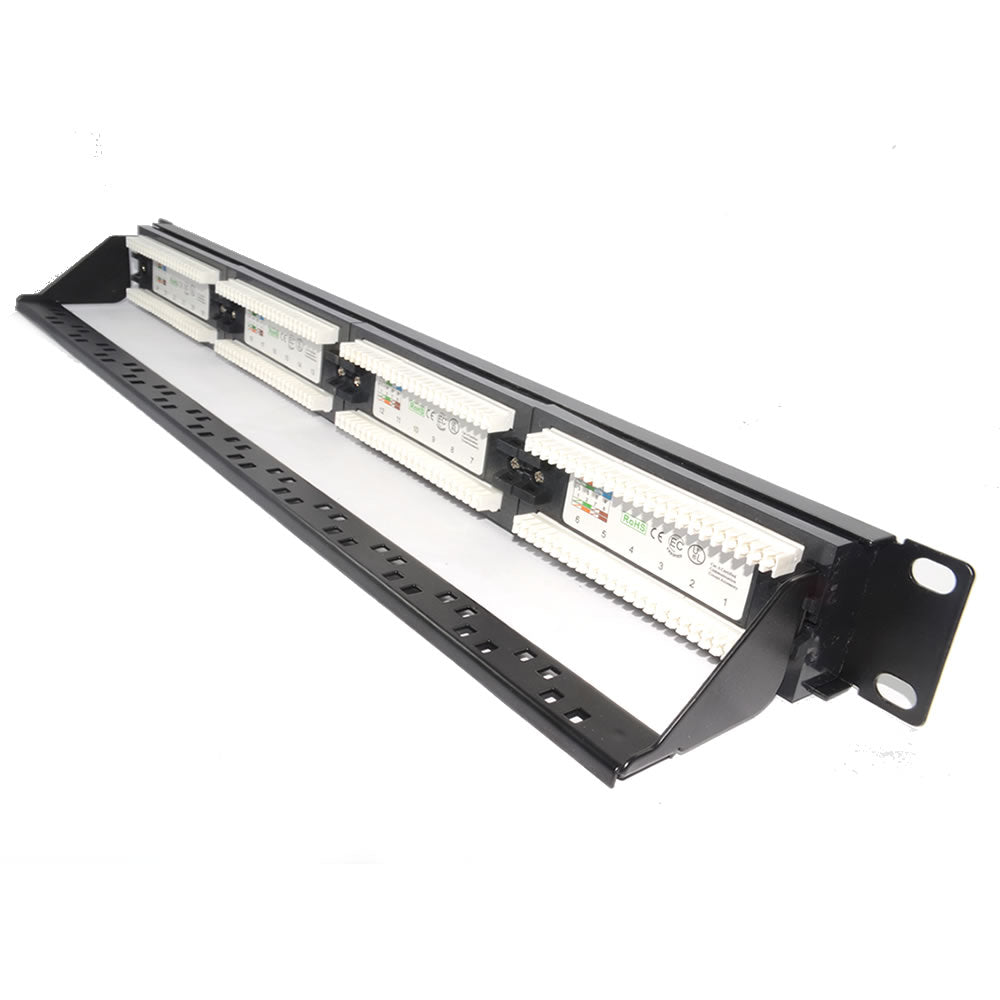

Removable Rear Cable Management Bar for Cable Anchoring

Part of the Synthesis 25-Year Warranty Solution

Applications



Office, Education and Home Structured Cabling Installs

Ideal for Gigabit Ethernet (1000Mbps) Data Networks

Create fault tolerant LANs by simply patching ports

Specifications

Port Count                            24 Ports UTP

Dimensions                           1U 19-Inch Design Format

Conformance                        TIA-EIA-568A/568-B2.1 Coded IDC

Performance                         10/100/1000Mbps Gigabit Compliance

RJ45/IDC Connects              Nickel and Phosphor Bronze

Port Identification                 Numbered and Bespoke ID Marker

Fixings                                  Supplied M6 Nuts and Bolts

* Specifications and product design are subject to change. E&OE.


* Apply for a cost free LMS Data 25-year warranty system when buying all LMS DATA point to point products. (Module, Patch Panel & Solid Cable)



Technical Info

SKU/MPN: PPAN-24-CAT6-N

EAN: 8400800036834

Weight: 0.5Kg approx

Files

PPAN-24-CAT6-N Data Sheet - Click Here

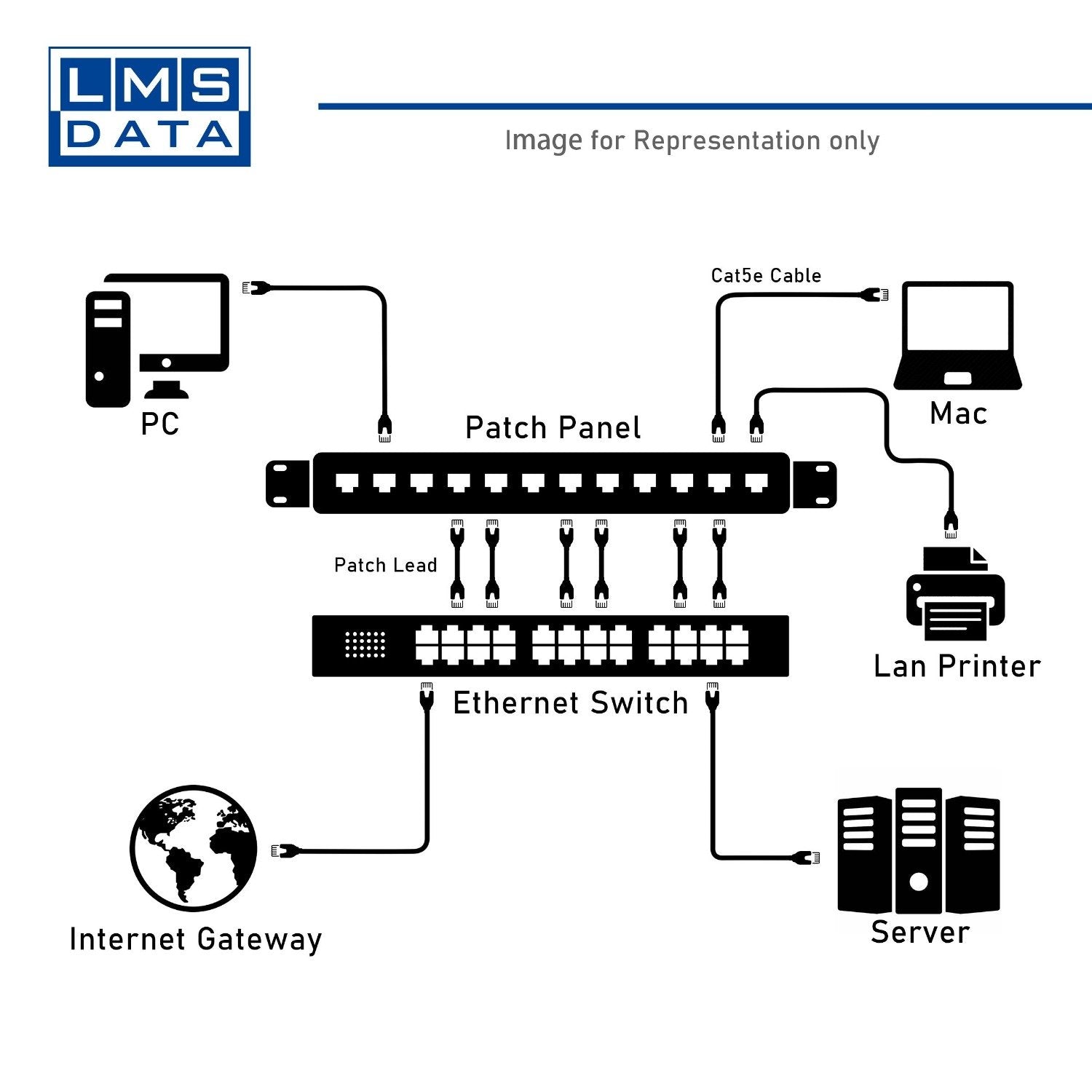

What's a Patch Panel? Designed in such a way that smaller length, separate patch leads can be plugged from an installed Switch to the patch panel. That way, if a Ethernet port fails, its just simply can be 'patched' to another port. Ideal for when you need to re-establish LAN links and to wall data outlets.
