Low Profile CAT5e RJ45 Module (w/Flip Name Plate) - RJ45 CAT5E Module (LP-MODC5E)
Rated 3.5/5 based on 11 customer reviews

Low Profile CAT5e RJ45 Module (w/Flip Name Plate) - RJ45 CAT5E Module (LP-MODC5E)

  • P/N: LP-MODC5E
Available: In Stock
£0.80 £1.50

Description

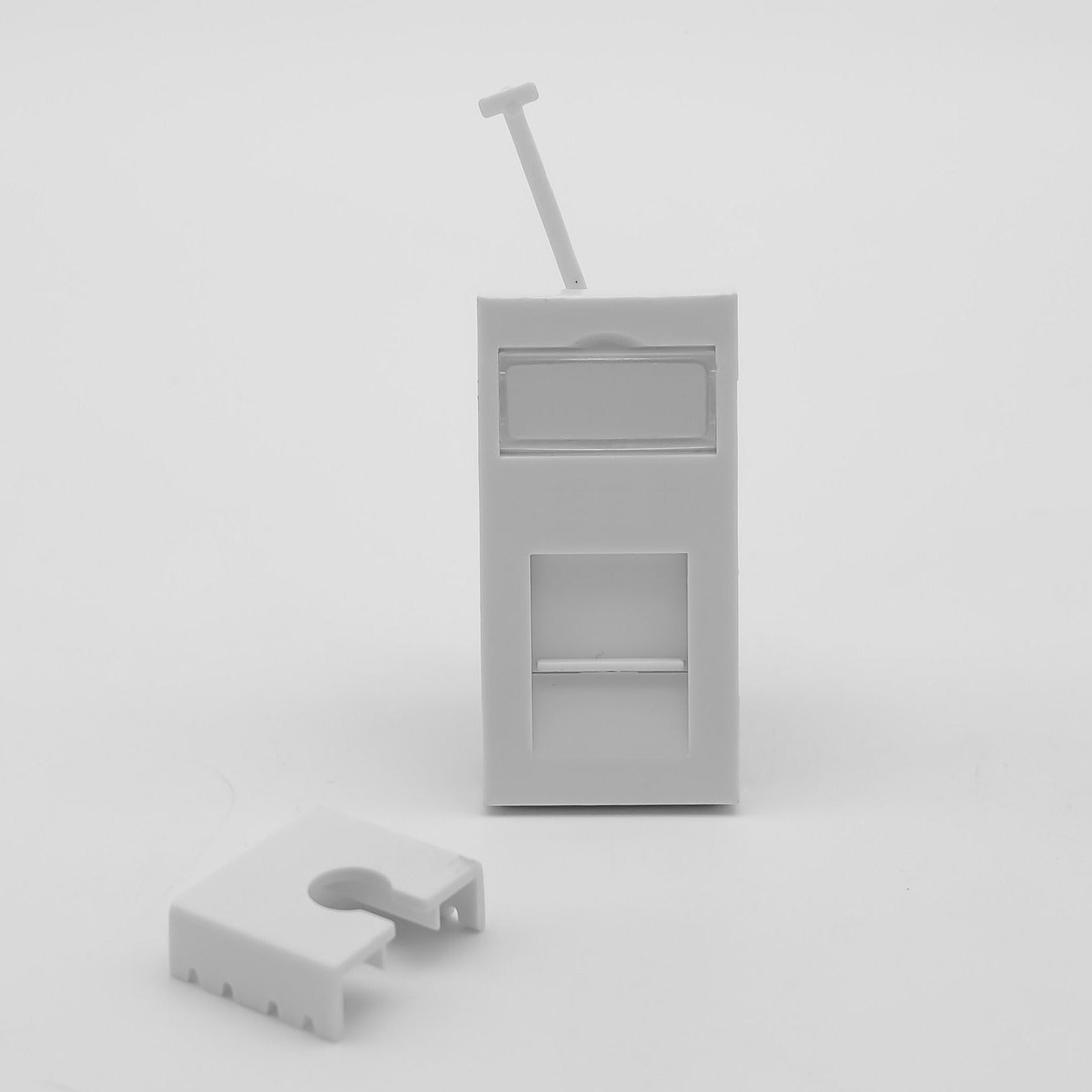

The LP-MODC5E/RJ45 CAT5E Module is a high quality ABS plastic standard fit Data Module with performance up to Category 5e. Pure white in colour, the LP-MODC5E also comes with a spring loaded shutter which fully protects the RJ45 socket from dust ingress and thus assures good electric contact with the RJ45 Plug.

Fully TIA-ETA-568A/B compatible and ideal for both Voice and Data applications up to 1000BaseT (Gigabit), the Module comes complete with a ‘windowed’ ID system allowing either handwritten or automated numbering of the outlet. Comes complete with rear cable management tidy.

KEY FEATURES

• EIA/TIA 568-A/B compliance
• IEEE 802.3x compatible
• 1000 Base-TX Gigabyte Ready
• Full shuttered protection; spring loaded

Technical Specifications

Certified Category 5e UTP Data Module

Fast Ethernet, Gigabit Ethernet compliant

150MHz Frequency for future Protocol support

ANSI/TIA-569-B compliant, exceeding ISO-11801

Low NEXT and Attenuation for improved signal quality

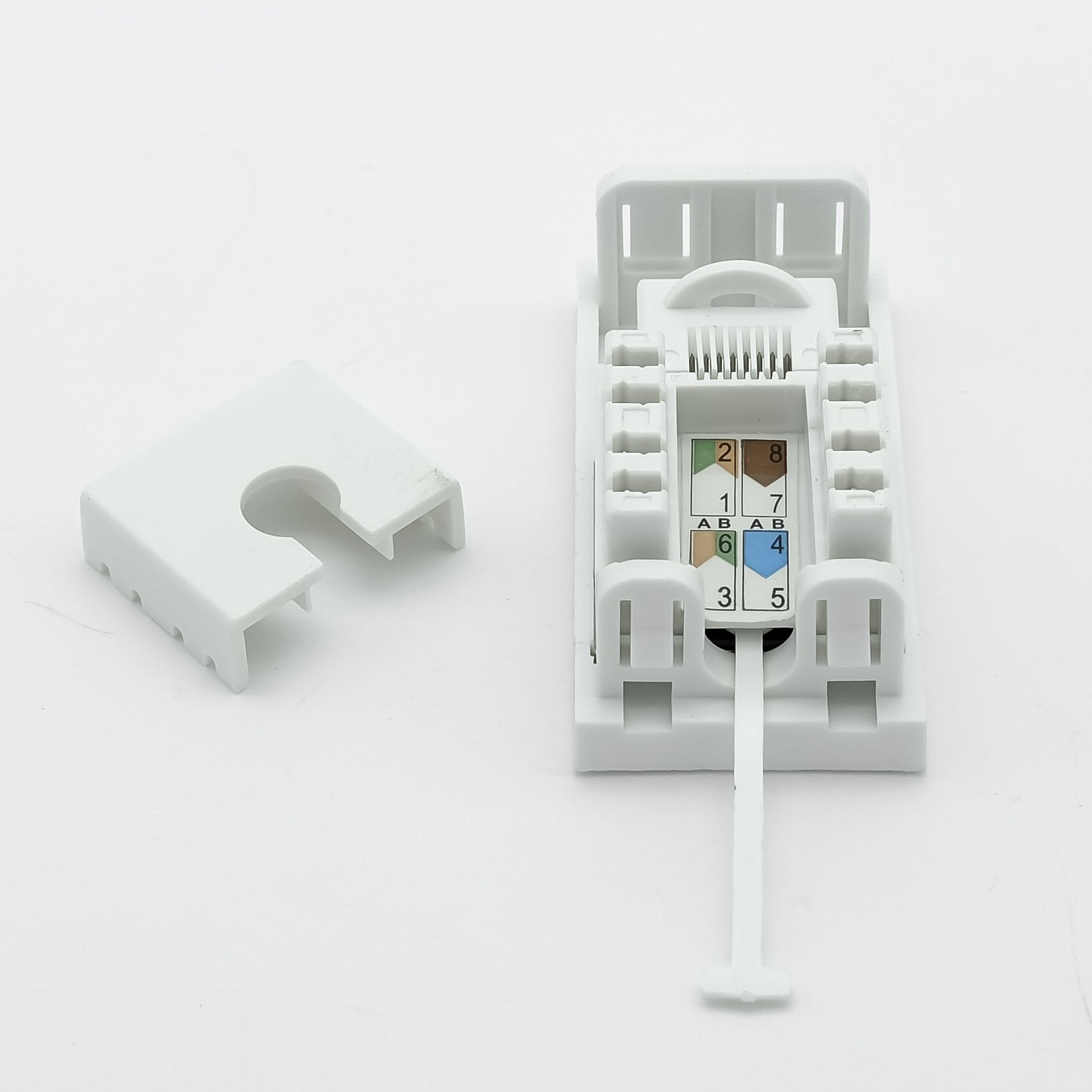

Colour coded 568-A/B rear Krone® IDC: 22-26 Solid AWG

High quality UTP 8-Wire RJ45 socket with ID Window

Spring loaded shutter for dust ingress protection

Fully backward 10BaseT, 100BaseT, ATM155 complaint

Ideal for LMS Data Faceplates: Comes with Cable Tidy

Dimensions: 2.5cm (W)x5cm(H)x2cm(D) (approx)

Product Info

SKU/MPN: LP-MODC5E

EAN: 8400800031938

Dimensions: 2.5cm (W)x5cm(H)x2cm(D) (approx)

DOCUMENTS

LP-MODC5E Data Sheet - Click Here
