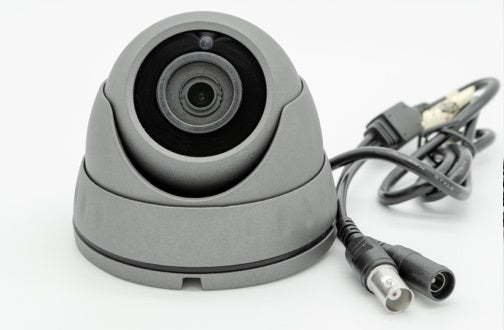

1080P/960H 4in1 Grey Dome CCTV Camera with 20m IR Distance & 3.6mm Lens - CVBS / CVI / TVI & AHD
Rated 3.5/5 based on 11 customer reviews

1080P/960H 4in1 Grey Dome CCTV Camera with 20m IR Distance & 3.6mm Lens - CVBS / CVI / TVI & AHD

Available: In Stock


Professional - 24/7 Monitoring for Business & Residential - CCTV Night/ Day Camera Solutions

Needing an effective but price-competitive, weatherproof, night and day camera for CCTV operations and installations?

The new INSIXT-SC-DW/DG CCTV camera is a fully specified dome type camera which is weather-proof to IP66 so its ideal for both internal and external CCTV camera applications.

Integral Infra-Red illumination means it can 'see' to around 20 metres in total darkness and coupled with a performance CMOS imaging chip means you have high-definition, 1080p resolution in full colour with minimal frame loss.

With an easy-to-use OSD with toggle-switch built into the cables, the camera can be ceiling mounted, wall mounted and of course the image can be reversed accordingly. Stand 75 Ohm coax and common 12VDC interface, the unit comes complete with complementary fixings & wall mount guide/sticker


  • Optical Glass 3.6mm Lens and fast F1.2 Aperture

  • High-Performance 2MP CMOS Sensor

  • High-Definition 1080p Resolution

  • Dual Signal System: PAL or NSTC

  • Integral LED Illumination with approx. 20 metre range

  • Minimum illumination: 0.001Lux @ F1.2

  • Weather-Proof design: IP66

  • Video Output: CVBS/CVI/TVI/AHD

  • OSD: Easy-To-Use Setup with Toggle Switch

  • DC 12Volts at 550mA with Coax signal connector

  • Robust alloy housing with adjustable design

  • Dimensions: 94.5(W) x 76(H) mm approx.

  • Fixings supplied as standard

  • Technical Info


    EAN: 8400800036902


    Dimensions: 94.5(W) x 76(H) mm approx


    Datasheet - INSIXT-SC-##.pdf
