48 Port 19" 2U Rackmount CAT5E UTP Through Coupler Modular Patch Panel (PPAN-48-THRU)
Rated 3.5/5 based on 11 customer reviews

48 Port 19" 2U Rackmount CAT5E UTP Through Coupler Modular Patch Panel (PPAN-48-THRU)

  • P/N: PPAN-48-THRU
Available: In Stock
£35.90 £43.92

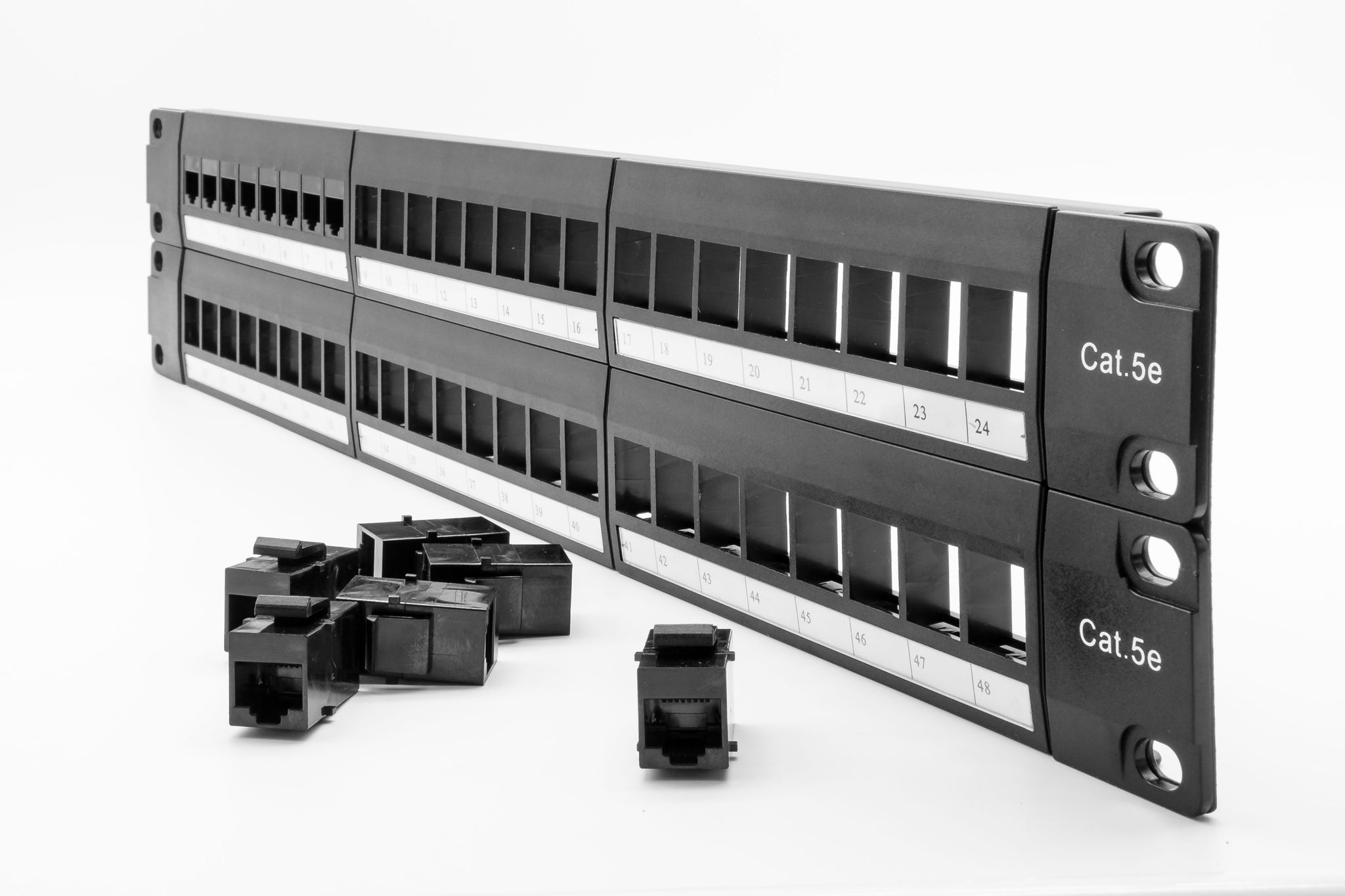

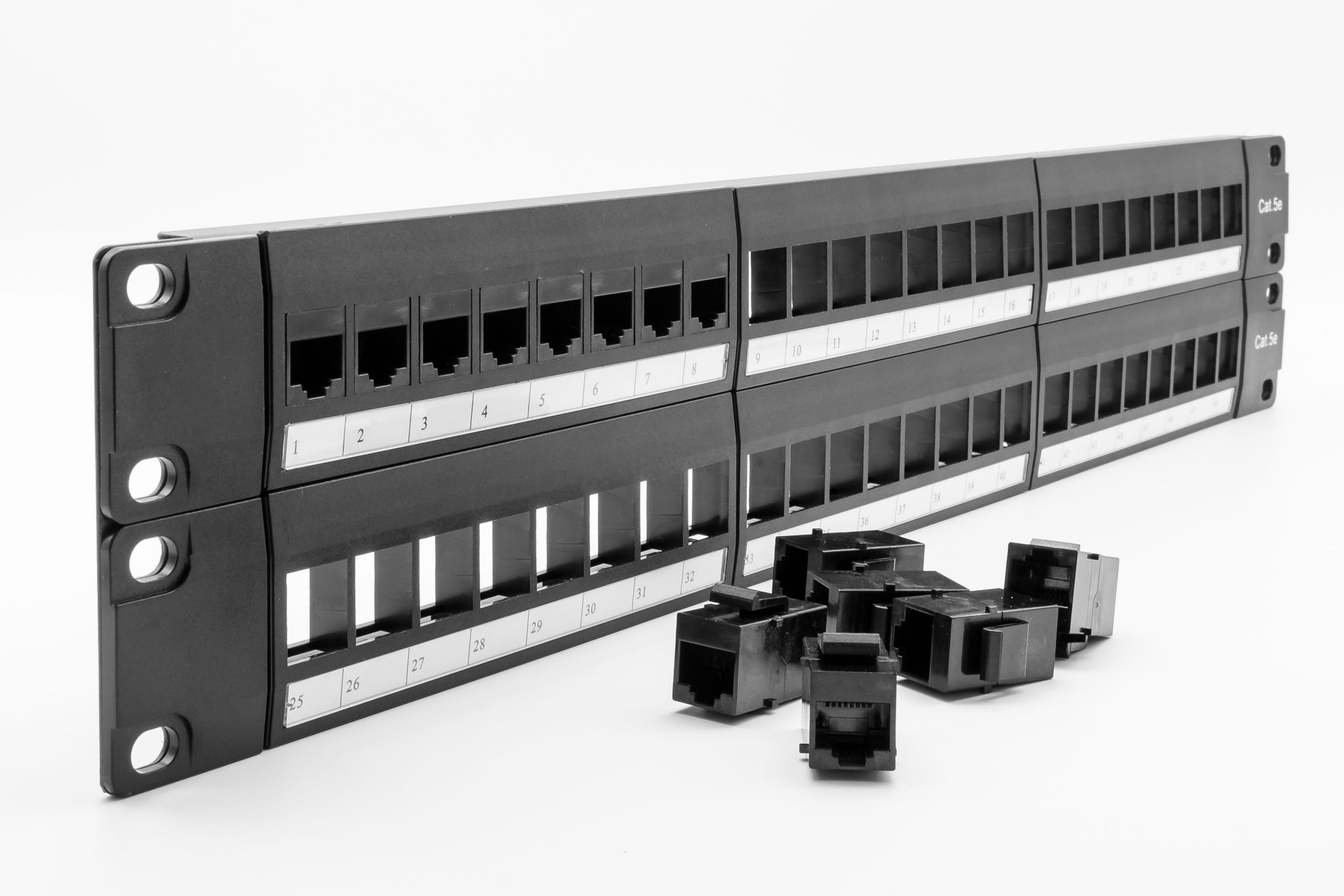

The LMS Data PPAN-48-THRU is 48 Port certified CAT5e UTP Patch Panel which is unique in that it has fully modular and replaceable CAT5eUTP ports. Simply snap in or snap out and mix and match with other accessories or when a port is damaged.

Fully Gigabit Ethernet certified means its ideal for running legacy and advanced networking protocols to Gigabit Switches up up to 1000Mbps. Also ideal for telecom, VoIP, CCTV-IP and other Ethernet based standards.

Long-life, nickel plated female RJ45s, the port modules use a through-coupler system so simply connect a RJ45 terminated cable to the rear of the panel.

Key Features

Certified CAT5E Performance for Gigabit Ethernet

Fully modular, snap-in, snap-out RJ45 port system

2u High means it fits in the smallest of data cabinets

Part of the Synthesis 25-Year Warranty Solution


Office, Education and Home Structured Cabling Installs

Ideal for Gigabit Ethernet (1000Mbps) Data Networks

Create fault tolerant LANs by simply patching ports

Technical Info


EAN: 8400800033512

Weight:  1Kg approx


Port Count                            48 Ports UTP

Dimensions                           2U 19-Inch Design Format

Design                                   Through Coupler System

Performance                         10/100/1000Mbps Gigabit Compliance

RJ45/IDC Connects               Nickel and Phosphor Bronze

Port Identification                 Numbered

Fixings                                  Supplied M6 Nuts and Bolts

* Specifications and product design are subject to change. E&OE.

Datasheet for PPAN-48-THRU.pdf
