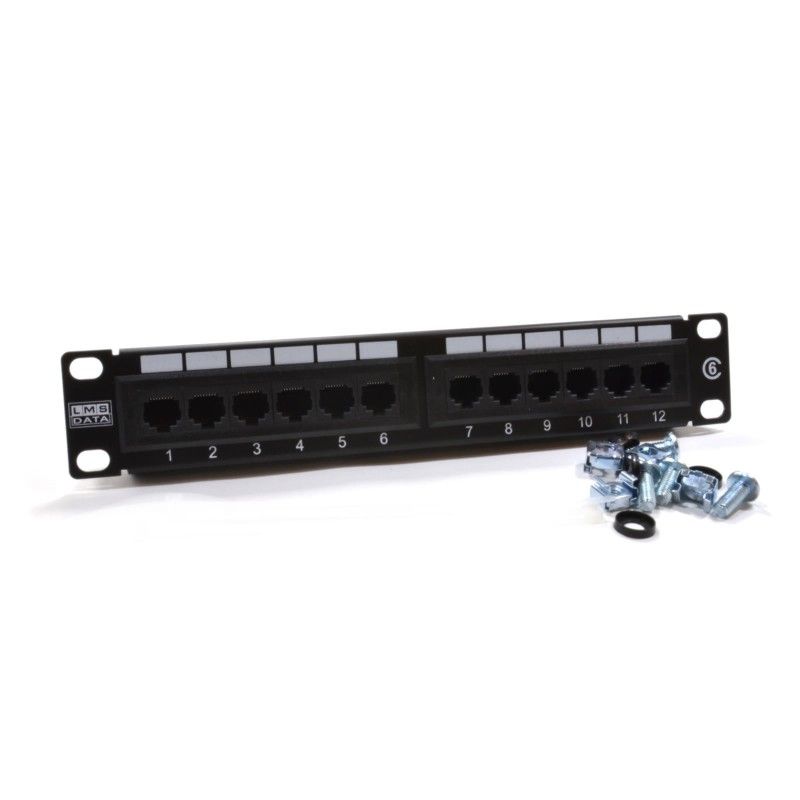

12 Port 1U 10-inch CAT6 UTP SOHO UTP PATCH PANEL (PPAN-12-10-C6)
- P/N: PPAN-12-10-C6
The LMS Data PPAN-12-10-C6 is 12 Port certified CAT6 UTP Patch Panel which is
designed as a SOHO (small office home office) 10-inch design. Being compact its design to fit in a range of 10-inch data cabinets found in homes and small offices.
Fully Gigabit Ethernet certified means its ideal for running legacy and advanced networking protocols to Gigabit Switches up up to 1000Mbps. Also ideal for telecom, VoIP, CCTV-IP and other Ethernet based standards.

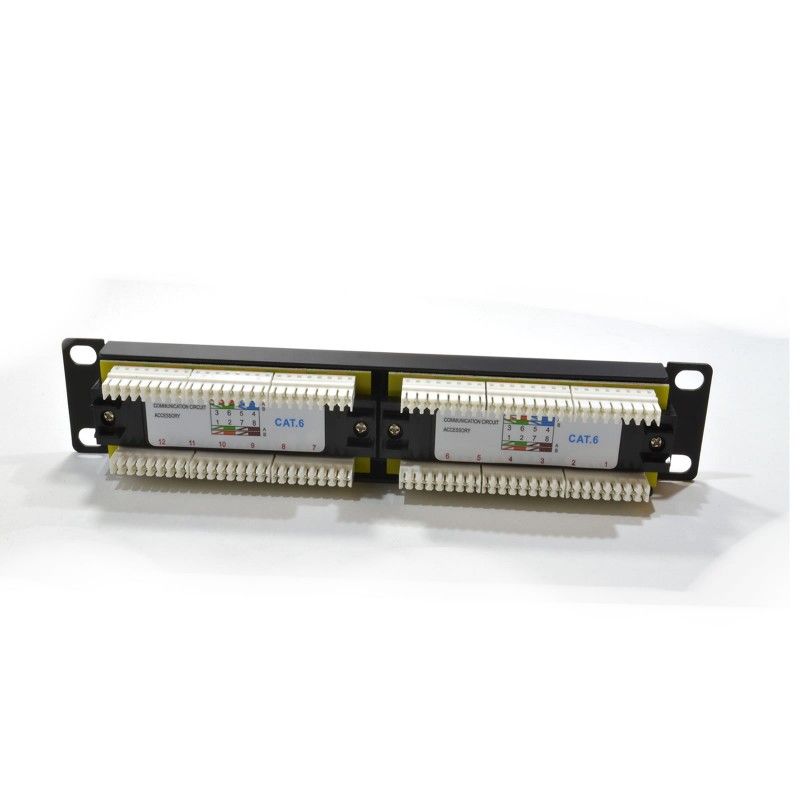

Long-life, nickel plated female RJ45s, robust construction with colour-coded rear Krone(tm) KATT type IDC for both TIA-568A/B terminations.
Certified CAT6 Performance for Gigabit Ethernet
10-inch SOHO Compact Design for 10-Inch Cabinets
Popular Krone(tm) KATT Dual Purpose IDC Punchdown
Removable Rear Cable Management Bar for Cable Anchoring
Part of the Synthesis 25-Year Warranty Solution
Home Offices, Branch Offices and CCTV Consolidation
Ideal for Gigabit Ethernet (1000Mbps) Data Networks
Create fault tolerant LANs by simply patching ports
Port Count 12 Ports UTP
Dimensions 1U 19-Inch Design Format
Conformance TIA-EIA-568A/568-B2.1 Coded IDC
Performance 10/100/1000Mbps Gigabit Compliance
RJ45/IDC Connects Nickel and Phosphor Bronze
Port Identification Numbered and Bespoke ID Marker
Fixings Supplied M6 Nuts and Bolts
* Specifications and product design are subject to change. E&OE.
Part Number: PPAN-12-10-C6
Weight: 0.3Kg approx

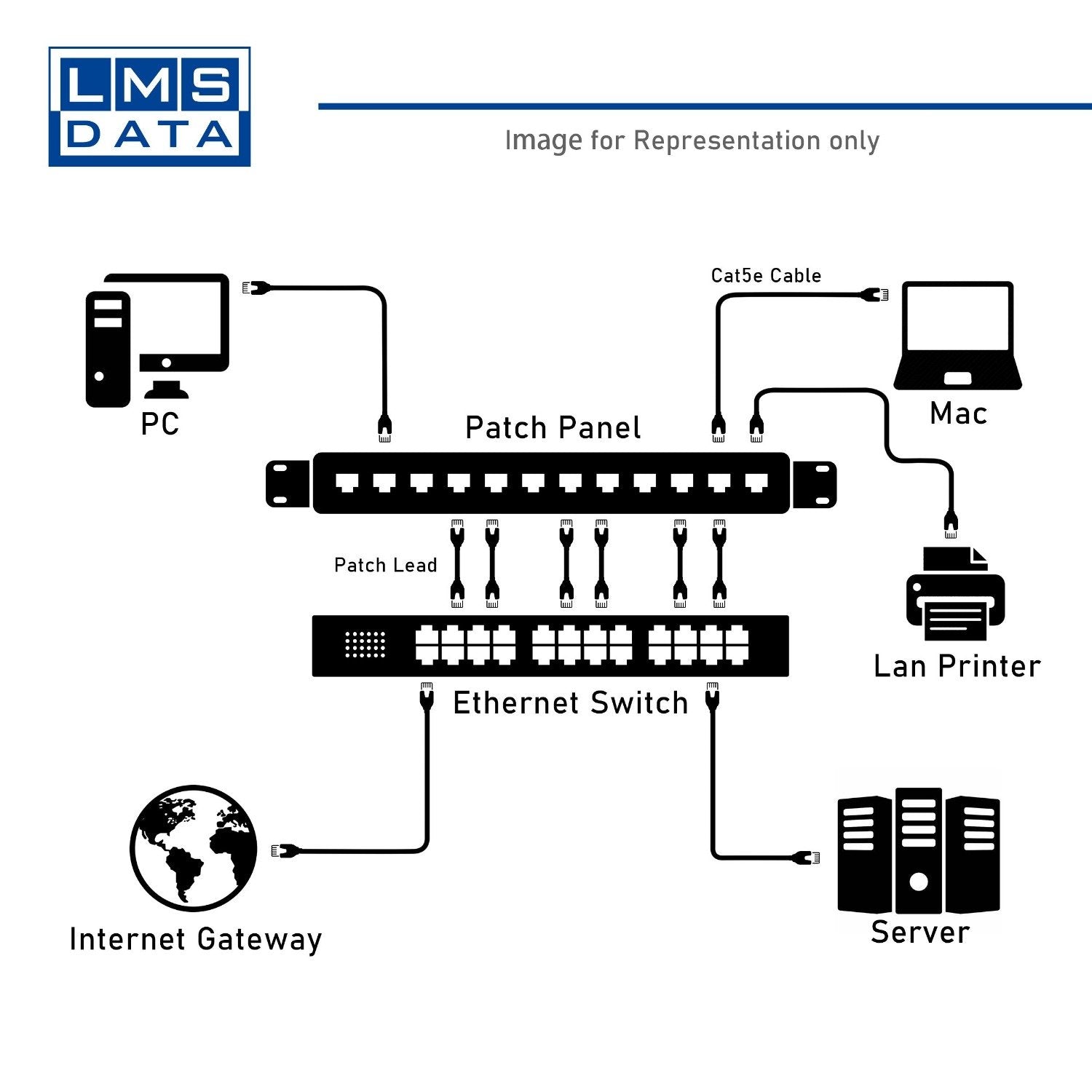

What's a Patch Panel? Designed in such a way that smaller length, separate patch leads can be plugged from an installed Switch to the patch panel. That way, if a Ethernet port fails, its just simply can be 'patched' to another port. Ideal for when you need to re-establish LAN links and to wall data outlets.
